Adjusting Front Wheel Tread with Adjustable Rims (8-position)
|
|
Front wheel tread can be adjusted by replacing or reversing the wheel rims. IMPORTANT: Nuts must be installed on outside of wheel. In addition the complete wheel can be reversed and installed on the opposite side of the tractor. The arrow |
on side wall of tire must then point in the direction of forward travel.
NOTE: Wheel tread on tractors equipped with a front loader must not exceed 1.80 m (71 in.). |

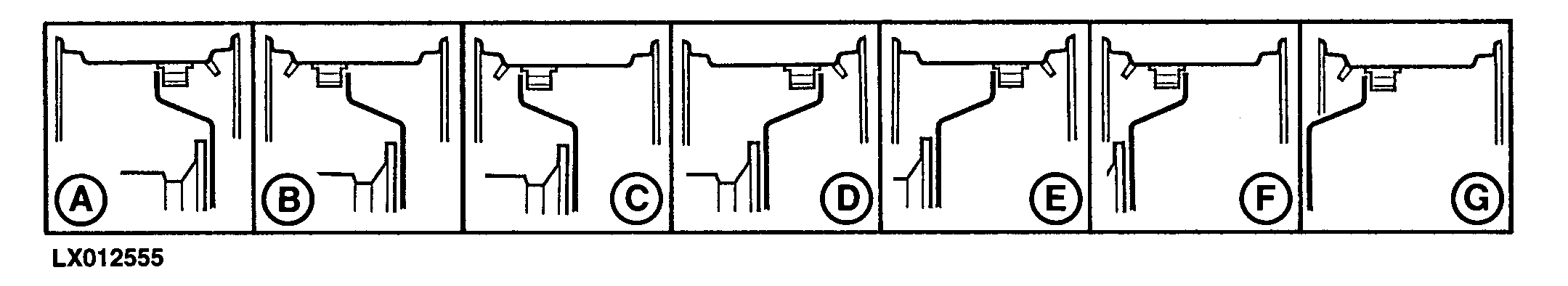

| Position of Rims and Wheel Disks |
||||||
|---|---|---|---|---|---|---|
| B |
C |
D |
E |
F |
G |
|
| 1612 mm (63.5 in.) |
1712 mm (67.4 in.) |
1816 mm (71.5 in.) |
1916 mm (75.4 in.) |
2012 mm (79.2 in.) |
2112 mm (83.1 in.) |
|
| Tires: | ||||||
| 14.9-24 | x | x | x | x | x | x |
| 16.9-24 | - | x | x | x | x | x |
| 420/70-24 | - | x | x | x | x | x |
| 12.4-28 | x | x | x | x | x | x |
| 13.6-28 | x | x | x | x | x | x |
| 14.9-28 | x | x | x | x | x | x |
| 16.9-28 | - | x | x | x | x | x |
| 420/70-28 | - | x | x | x | x | x |
| all others | - | - | x | x | x | x |
AG,OU12401,164 -19-27MAR00-1/1 |
