Adjusting Front Wheel Tread with Adjustable Rims (16-position)
|
|
Front wheel tread can be adjusted by replacing or reversing the wheel rims. Additional tread widths can be achieved by using spacers. IMPORTANT: Nuts must be installed on outside of wheel. In addition the complete wheel can be reversed and installed on the opposite side of the tractor. The arrow |
on side wall of tire must then point in the direction of forward travel.
NOTE: Wheel tread on tractors equipped with a front loader must not exceed 1.80 m (71 in.). |

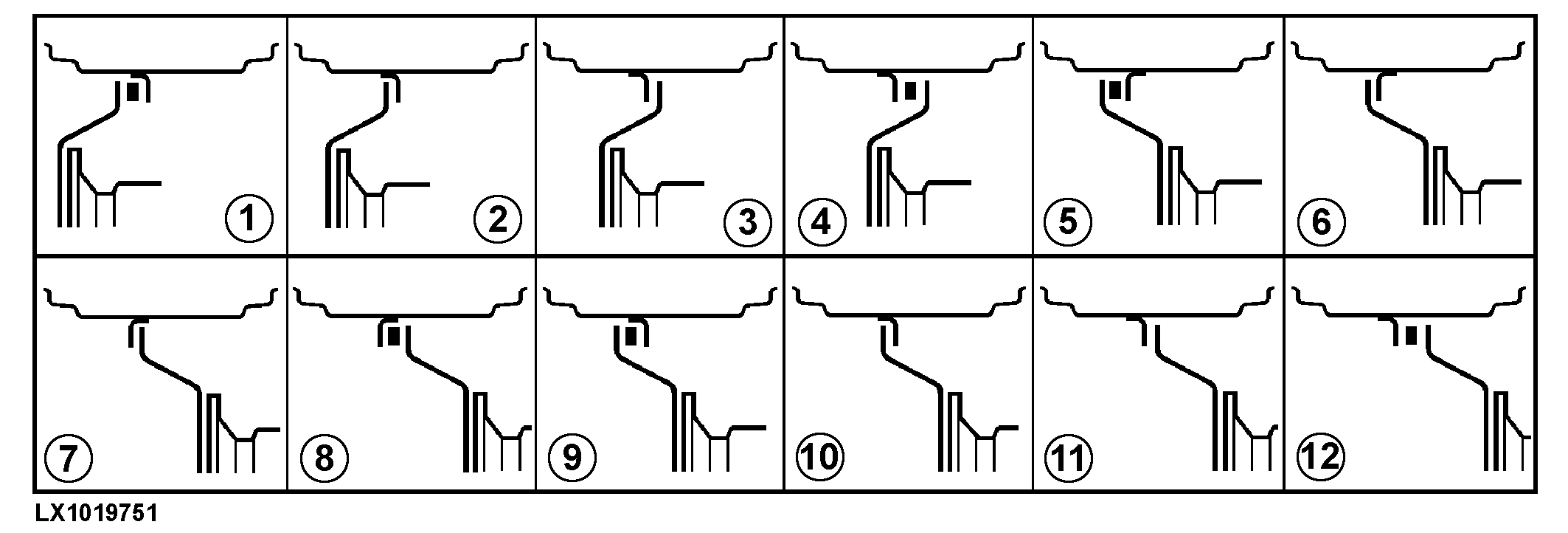

| Positions of Rims, Wheel Disks and Spacers |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|
| mm (in.) |
1618 (63.7) |
1648 (64.9) |
1680 (66.1) |
1710 (67.3) |
1814 (71.4) |
1844 (72.6) |
1878 (73.9) |
1908 (75.1) |
2018 (79.4) |
2048 (80.6) |
2080 (81.9) |
2110 (83.1) |
| Tires: | ||||||||||||
| 14.9-24 | x | x | x | x | x | x | x | x | x | x | x | x |
| 16.9-24 | - | - | - | x | x | x | x | x | x | x | x | x |
| 420/70-24 | - | - | - | x | x | x | x | x | x | x | x | x |
| 12.4-28 | x | x | x | x | x | x | x | x | x | x | x | x |
| 13.6-28 | x | x | x | x | x | x | x | x | x | x | x | x |
| 14.9-28 | x | x | x | x | x | x | x | x | x | x | x | x |
| 16.9-28 | - | - | - | x | x | x | x | x | x | x | x | x |
| 420/70-28 | - | - | - | x | x | x | x | x | x | x | x | x |
| all others | - | - | - | - | x | x | x | x | x | x | x | x |
AG,OU12401,165 -19-27MAR00-1/1 |
