OMAL152892: 6510, 6610, 6810, 6910(266767- )and 6910S Tractors, Block File: LX_OEIN003976_19

After First 4 and 8 Hours of Operation

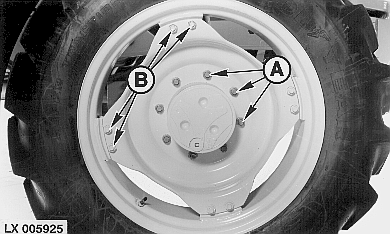

Tighten Rear Wheel Retaining Bolts

A-500 N·m (370 lb-ft)
B-310 N·m (230 lb-ft)

LX,OEIN003976 -19-01MAY00-1/2

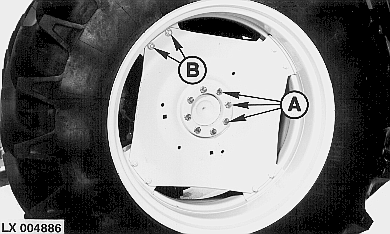

Tighten Front Wheel Retaining Bolts/Nuts

A-6510 to 6810 tractors: 300 N·m (220 lb-ft)
-6910 and 6910S tractors: 480 N·m (355 lb-ft)
B-8.8 grade bolts: 250 N·m (185 lb-ft)
-10.9 grade bolts: 310 N·m (230 lb-ft)

LX,OEIN003976 -19-01MAY00-2/2
