Engaging Creeper Transmission

To engage or disengage creeper transmission, depress clutch pedal.

Select creeper as follows:

1. Select range.
2. Select creeper.

Never engage creeper transmission with engine speed higher than 1000 rpm.

IMPORTANT: Never use the creeper transmission when using implements that penetrate the soil and require a high power input.

Never use the creeper transmission in ranges D or higher (only possible on 6810 and 6910 tractors). Using the creeper transmission under any of these circumstances may lead to mechanical failure.

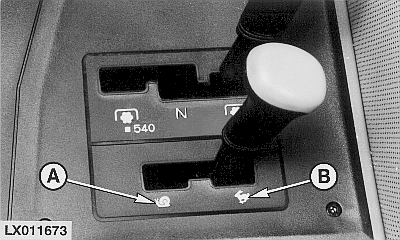

LX011673


A-Creeper speed
B-High speed

LX,OFAH000193 -19-01SEP99-1/1
