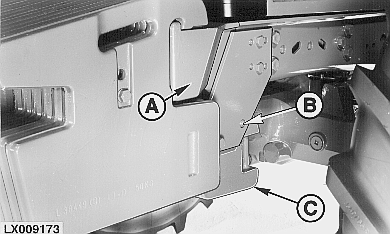

Additional Weight Package Weighing 180 kg (400 lb)6810, 6910 and 6910S tractors only (not applicable with front-axle suspension)The additional weight package of 180 kg (400 lb) may be used only in conjunction with the 110 kg (245 lb) basic weight (A). Up to eight quick-attachment weights (C) may be installed, each weighing 20 kg (44 lb). Each additional 10 kg (22 lb) weight increase raises front axle load by approx. 12 kg (26.5 lb). To remove or install, take off hex. socket screw (B). Install or remove the quick-attachment weights one at a time. |
|
LX,OMBAL011318 -19-01MAY00-1/1 |
