Power Shift Transmission Enabling Mode

The enabling mode provides limited transmission in the event of a malfunction.

Take the cover off the console to gain access to the wiring.

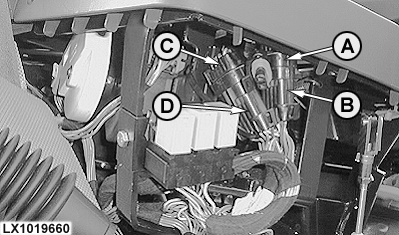

Take cover (A) off plug (B). Disconnect plugs (C) and (D).

Connect plug (B) to plug (C). This enables the use of two gears (ninth forward and fourth reverse). Engaging the clutch is necessary for operation.

LX,OMPST020558 -19-01MAR00-1/1
