Telescopic Draft Links

Telescopic draft links are intended for Category II and Category IIIN implements.

To facilitate hitching of implements, extend the draft links to the rear.

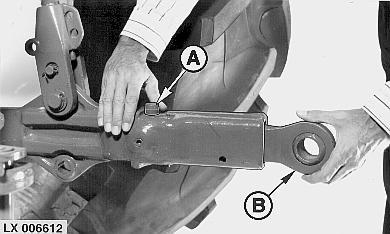

1. On 6510 and 6610 tractors, lift lock pin (A).

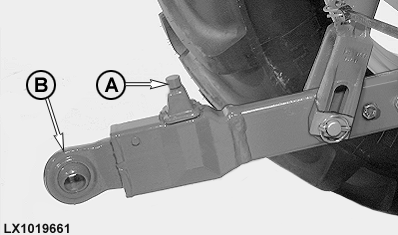

On 6810, 6910 and 6910S tractors, push lock pin (A) to one side.

2. Pull telescopic draft links (B) to the rear.

After attaching and securing implements to draft links, reverse the tractor until the lock pins snap into place.
