Lift Links, 6810, 6910 and 6910S Tractors

A greater transport clearance is obtained by shortening the links. Extra working depth is obtained by lengthening the links.

To level implement from side-to-side, adjust one link. Use crank (A) to adjust the link. After adjustment is completed, secure crank (A).

Length of links (B) must be kept within the following limits:

  • Minimum length 875 mm (34.4 in.)
  • Maximum length 1035 mm (40.7 in.)

NOTE: The lift link dimensions quoted above are with lift links locked in draft links (no vertical float).

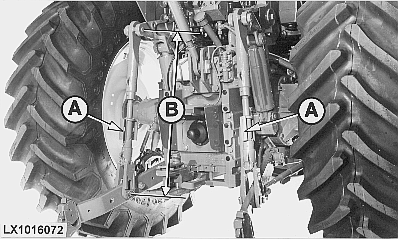

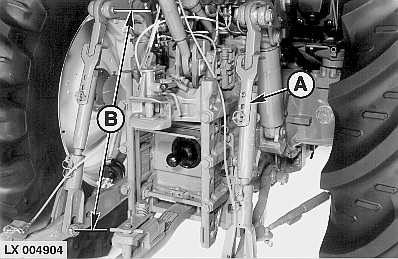

A-Adjusting crank
B-Length of links

LX1016072
LX004904

LX,OMREG011308 -19-01MAY00-1/1
