Adjusting Spreading Dimension

Drive tractor to the center of the implement. Remove ring (B) and lift up flap cover (A). Adjust spreading dimension with lever (H).

Tractors Category Groove
6510 II 1
6610 II 1
6810 II + IIIN 3
6810 III 2
6910 II + IIIN 3
6910
6910S
6910S		 III
II + IIIN
III		 2
3
2

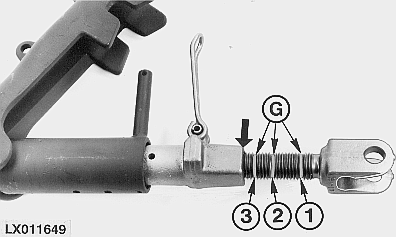

Grooves (G) provide assistance in adjusting the spreading dimension.

The groove (G) that corresponds to the relevant category should be aligned with the edge (see arrow).

Then locate lever (H) on pin (C), put down flap cover (A) and secure with ring (B). Then adjust spacer (D).

IMPORTANT: The spreading dimension must be large enough to prevent draft links (E) from interfering with sway blocks (F), as this may result in mechanical damage.


A-Flap cover
B-Ring
C-Pin
D-Spacer
E-Draft link
F-Sway block
G-Grooves corresponding to Category
H-Lever

LX009470
LX009819
LX011649
LX001750
