Adjust Front Wheel Toe-In

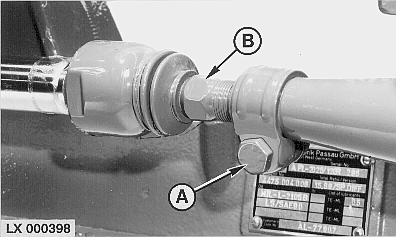

Slacken clamping screw (A) and turn threaded rod (B) in or out. After adjustment is completed, tighten clamping screw.

Torque Specification
6510 to 6810 tractors... 50 N·m (35 lb-ft)
6910 and 6910S tractors... 85 N·m (60 lb-ft)


LX000398

LX,OMSPU011321 -19-01MAY00-1/1
