Lubricating Three-Point Hitch

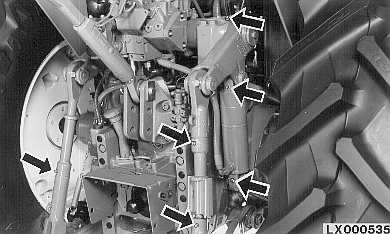

Lubricate grease fittings with several strokes of grease gun. Use John Deere multipurpose grease.

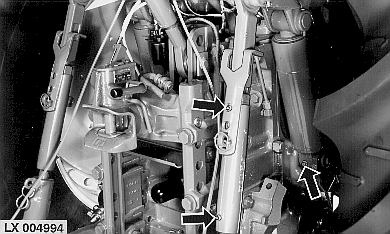

NOTE: The grease fittings on the second lift cylinder and second lift link are not visible in this illustration.

LX,OMWAR013348 -19-01MAY00-1/1
