Neutral Start Circuit (Tractors With Mechanical Forward/Reverse)

1. Depress clutch pedal.

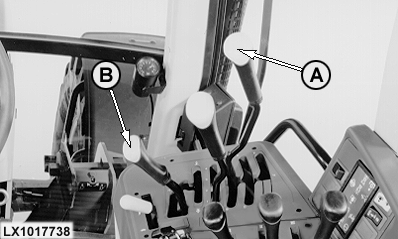

2. Move range shift lever (A) to neutral.

3. Move reverse drive lever (B) to "forward" position.

4. Turn key in main switch as far as it will go to the right. The starter motor must NOT turn over. If it does, see your John Deere dealer immediately.

5. Repeat the test in the "reverse" position.

LX,OMWAR013351 -19-01SEP97-1/1
