Changing Oil in Front-Wheel Drive Axle Housing

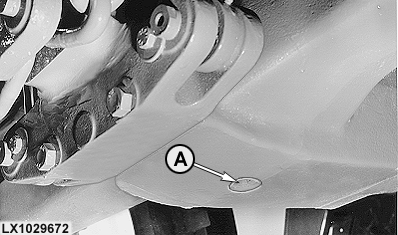

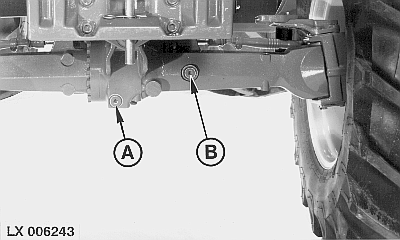

1. Remove drain screw (A) and drain oil into a suitable container.

2. Reinstall drain screw and tighten to 150 N·m (110 ft-lb.).

3. Remove oil level/filler plug (B). Add fresh oil. The oil level must be up to lip of filler neck. Reinstall plug.

For capacities see section "Specifications".

NOTE: Location of screws varies depending on axle type.

LX006243
LX1019672

LX,OMWAR013358 -19-01MAR00-1/1
