Neutral Start Circuit (Tractors With Power Shift Transmission)

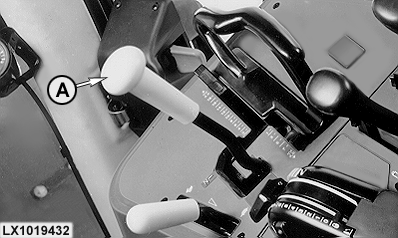

1. Move gear shift lever (A) to any of the forward gears.

2. Turn key in main switch as far as it will go to the right. The starter motor must NOT turn over. If it does, see your John Deere dealer immediately.

3. Repeat the test in any of the reverse gears.

LX1019432

LX,OMWAR017532 -19-01OCT98-1/1
