Power Beyond Couplers, 6510 and 6610 Tractors

On implements which have a Load Sense connection of their own, the Power Beyond couplers should be used.

When the couplers are not in use, use the protective dust caps.

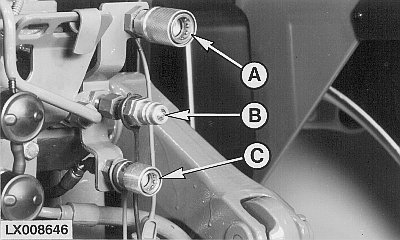

A-Pressure connection
B-Return connection
C-Load Sense connection

LX,OMZUS013323 -19-01SEP97-1/1
