Using Pressure-Free Return Circuit, 6510 and 6610 Tractors

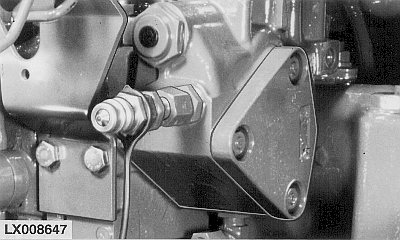

This connection ensures a pressure-free oil return.

Examples of implements which cannot withstand high pressure in the return line:

Hydraulic motors which have a pressurized oil return. Failure of the motor housing or shaft seals may result if the return line is pressurized.

Remote hydraulic valves located on the implement may allow unexpected movement of cylinders if the return port is pressurized.

When the pressure-free return circuit is not in use, use the protective dust cap.

LX,OMZUS013324 -19-01SEP97-1/1
