Lengthwise Adjustment of Drawbar

The swinging drawbar can be adjusted to four different positions:

250 mm (9.8 in.), 350 mm (13.8 in.), 400 mm (15.7 in.) and 550 mm (21.7 in.).

NOTE: 550 mm (21.7 in.) is NOT an option on 6810, 6910 and 6910S tractors. 400 mm (15.7 in.) is NOT an option on tractors equipped with Power Shift.

These lengths determine the distance from the end of the PTO shaft to the attachment point of the swinging drawbar.

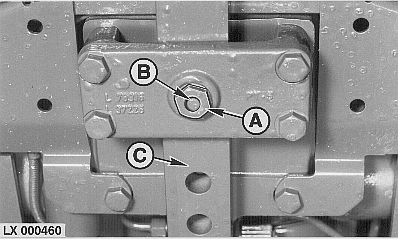

1. Remove hex. stopper (A).
2. Remove locking pin (B).
3. Shift drawbar (C) to desired position and reinstall locking pin.
4. Tighten hex. stopper (A) to 250 N·m (185 lb-ft).
