Changing Transmission/Hydraulic Oil (Tractors with AutoPowr)

1. Start engine and operate several hydraulic functions to heat up oil.

2. Park tractor so that it is level. Lower draft links and front-mounted implements.

3. Turn off engine and remove key.

4. Apply handbrake (transmission in "P").

5. Remove drain screws (A).

6. Replace transmission/hydraulic oil filter element (B).

7. Add transmission/hydraulic oil to the transmission case.

6610 tractors...
6810, 6910 and 6910S tractors...
Extra with additional oil reservoir...		 60 liters (15.9 U.S. gal.)
66 liters (17.4 U.S. gal.)
10 liters (2.6 U.S. gal.)



Run engine briefly and operate hydraulic functions. Shut off the engine.

Tighten bleed valve (C) by at least 2 turns. Wait for between 10 and 15 minutes before checking the oil level. It should be between the marks on the dipstick or sight-glass. If not, correct oil level. Remember to close the bleed valve tightly.


A-Drain screws
B-Transmission/hydraulic oil filter

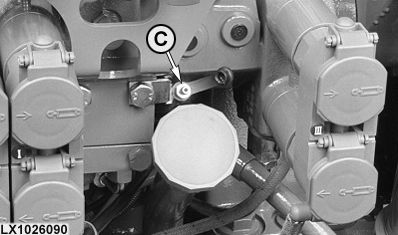

C-Bleed valve

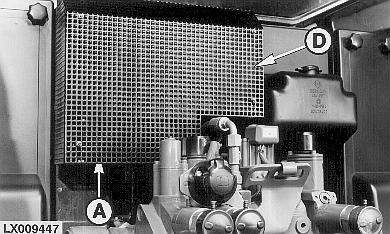

D-Additional oil reservoir

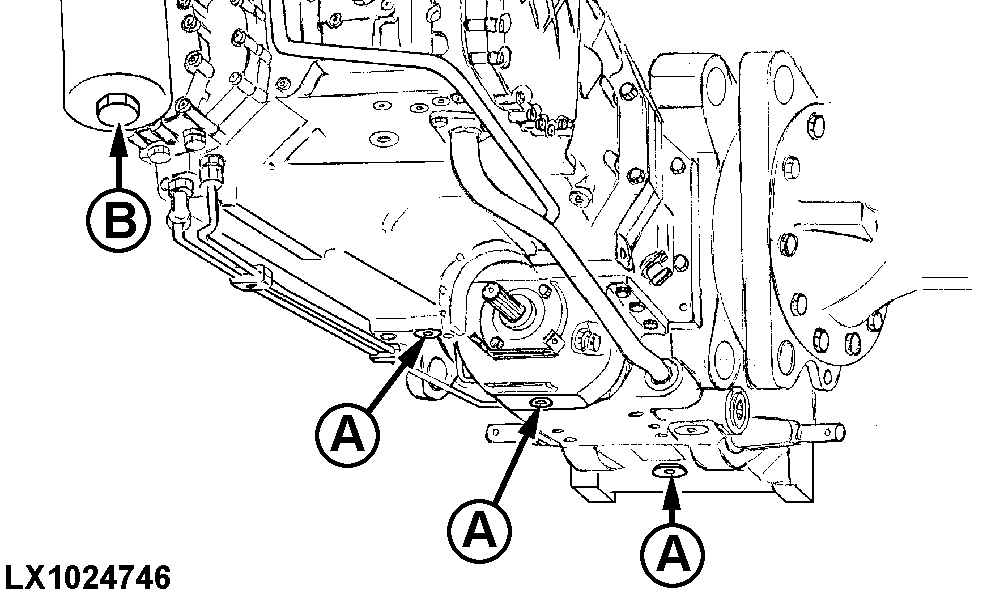

LX1024746

Transmission/hydraulic oil filter & drain screws (6610)

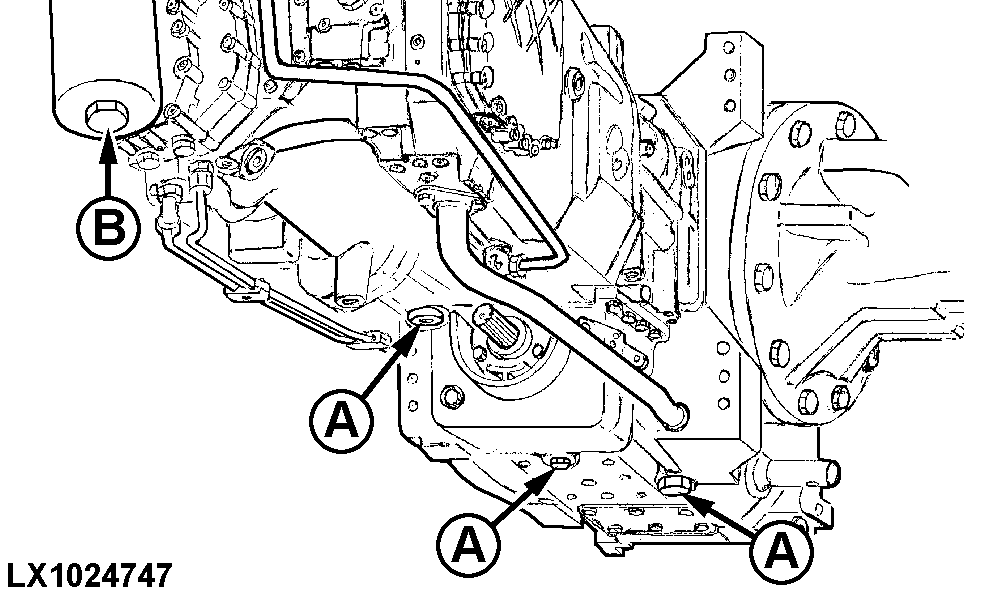

LX1024747

Transmission/hydraulic oil filter & drain screws (6810/6910/6910S)

LX1026090
LX009447

OU12401,00005AD -19-01FEB01-1/2

Additional work on tractors with hydraulic trailer brakes

1. Disconnect hydraulic line (A) from fitting (B).

2. Loosen fitting (B) and turn it to one side.

3. Remove screen (C) from hydraulic line (A) and wash it in fuel.

4. Insert screen (C) and attach hydraulic line (A).

5. Tighten hydraulic line (A) and fitting (B).

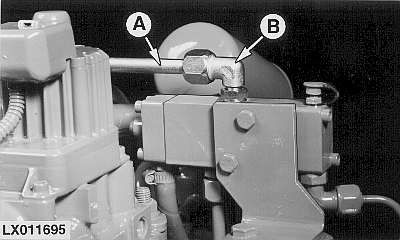

LX011695

6510 and 6610 tractors

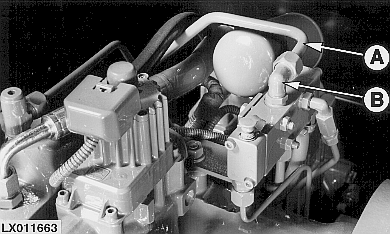

LX011663

6810 and 6910 tractors

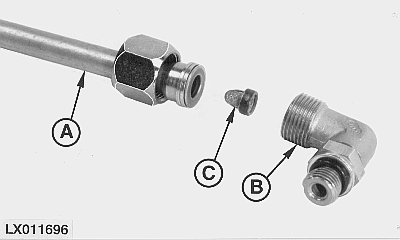

LX011696

Inserting the screen

OU12401,00005AD -19-01FEB01-2/2
