OMAL152911: 6110, 6110L, 6210, 6210L, 6310, 6310L, 6310S, 6410, 6410L, 6410S, 6510L and 6510S Tractors( 270654- ), Block File: AG_OU12401_127_19

Regular Cab

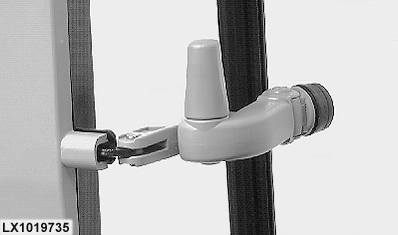

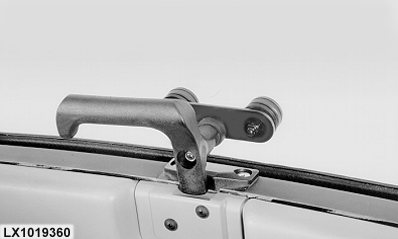

The side and rear windows can all be opened for better ventilation.

AG,OU12401,127 -19-04MAR00-1/2

Low Clearance Cab

NOTE: On tractors with Low Clearance Cab, only the rear window can be opened.

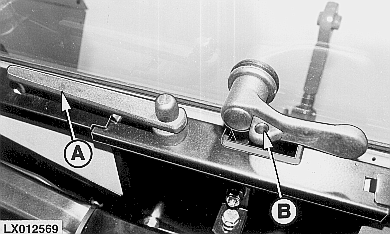

To keep rear window partly open, open window and lock it in position by turning lever (A) approx. 90 degrees and engaging lever pin in bore (B).

AG,OU12401,127 -19-04MAR00-2/2
