After First 100 Hours of Operation

Change engine oil. See "Service - Every 250 Hours".

Renew engine oil filter element. See "Service - Every 250 Hours".

Tighten air intake hoses and hose clamps. See "Service - Every 500 Hours".

Change transmission/hydraulic oil filters. See "Service - Every 750 Hours".

Change oil in front-wheel drive axle. See "Service - Every 1500 Hours".

AG,OU12401,131 -19-06MAR00-1/2

Check cab or 2-post ROPS mounting torques

Check all cab and ROPS attaching screws for tightness.

Specified torques are as follows:

With cab

  • front attaching screws: 220 N·m (160 lb-ft)
  • rear attaching screws: 200 N·m (145 lb-ft)

Without cab

  • attaching screws: 400 N·m (300 lb-ft)

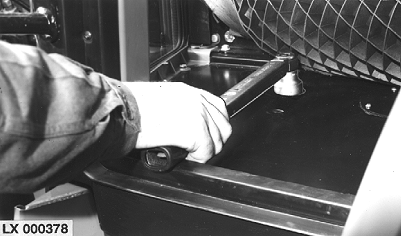

LX000378

100-Hour Service (Tractors with cab)

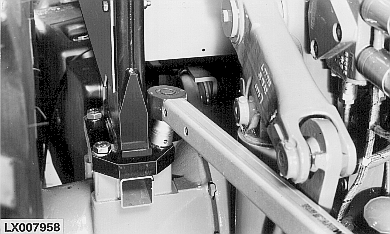

LX007958

100-Hour Service (Tractors without cab)

AG,OU12401,131 -19-06MAR00-2/2
