Limiting Front Wheel Steering Angle

With certain wheel treads, the front wheel steering angle must be limited to less than 50° (see table).

Adjust dimension (L) to one of the values shown in the table.

NOTE: Steering angle must be the same on both sides.

Tighten lock nut to 200 N·m (150 lb-ft).

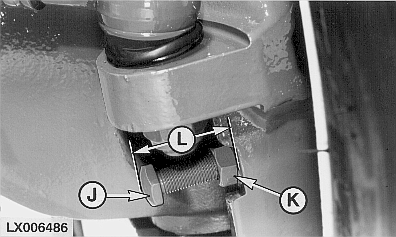

LX006486


J-Steering angle adjusting screw
K-Lock nut
L-Dimension


Position of Rims and Wheel Disks (see previous page)
    A B C D E F G


Dimension L
 Dimension L
 Dimension L
 Dimension L
 Dimension L
 Dimension L
 Dimension L

Tires
 mm
 in.
 mm
 in.
 mm
 in.
 mm
 in.
 mm
 in.
 mm
 in.
 mm
 in.
Narrow axle 12.4-24         88 3.5 76 2.9 52 2.0 40 1.6

12.4-28



88
 3.5
 76
 2.9
 52
 2.0
 40
 1.6

Standard 12.4-24 - - 62 2.4 52 2.0 36 1.4 22 0.9 22 0.9 22 0.9
tread widths 13.6-24 - - 73 2.9 64 2.5 50 2.0 36 1.4 22 0.9 22 0.9
  14.9.24 - - - - 71 2.8 62 2.4 48 1.9 38 1.5 24 0.9
  16.9-24 - - - - 78 3.1 71 2.8 55 2.2 45 1.8 34 1.3
  11.2-28 - - 64 2.5 48 1.9 34 1.4 22 0.9 22 0.9 22 0.9
  12.4-28 - - 71 2.8 64 2.5 50 2.0 34 1.4 24 0.9 22 0.9
  13.6-28 - - - - 65 2.6 42 1.7 30 1.2 30 1.2 30 1.2

13.6-38
 -
 -
 -
 -
 61
 2.4
 50
 2.0
 36
 1.4
 30
 1.2
 30
 1.2
With 60 mm 12.4-24 62 2.4 52 2.0 36 1.4 22 0.9 22 0.9 22 0.9 22 0.9
(2.36 in.) 13.6-24 73 2.9 64 2.5 50 2.0 36 1.4 22 0.9 22 0.9 22 0.9
spacers 14.9.24 - - 71 2.8 62 2.4 48 1.9 38 1.5 24 0.9 22 0.9
  16.9-24 - - 78 3.1 71 2.8 55 2.2 45 1.8 34 1.3 22 0.9
  11.2-28 64 2.5 48 1.9 34 1.4 22 0.9 22 0.9 22 0.9 22 0.9
  12.4-28 71 2.8 64 2.5 50 2.0 34 1.4 24 0.9 22 0.9 22 0.9
  13.6-28 - - 65 2.6 42 1.7 30 1.2 30 1.2 30 1.2 22 0.9
  13.6-38 - - 61 2.4 50 2.0 36 1.4 30 1.2 30 1.2 22 0.9



AG,OU12401,136 -19-07MAR00-1/1
