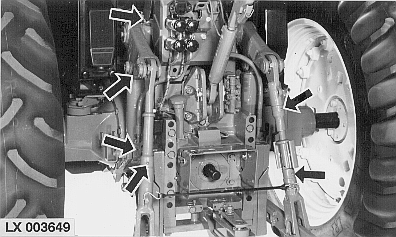

Lubricate grease fittings with several strokes of grease gun, using John Deere multipurpose grease.

NOTE: The grease fittings on the second lift cylinder and on the other side of the rockshaft are not visible on this illustration.
