Windshield Wiper and Washer System

Windshield wiper switch (A) has two or three positions:

• 1 = Intermittent wipe (optional)
• 2 = Slow wipe
• 3 = Fast wipe

The windshield washer system is operated by means of switch (A) (push towards steering column).

Rear window wiper switch (B) has two positions:

• 1 = Slow wipe
• 2 = Fast wipe

The rear window washer system is operated by means of switch (B) (push the switch).

Add a suitable anti-freeze solution to water in reservoir (C) if temperature is liable to drop below freezing point.

A-Switch for windshield wiper
B-Switch for rear window wiper

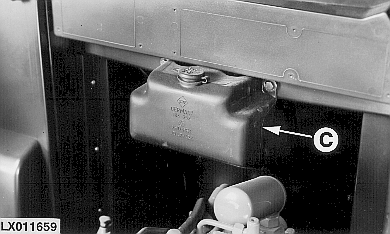

C-Reservoir for windshield washer system

LX,OCAB008974 -19-01APR97-1/2

Rear window wiper on tractors with Low Clearance Cab

NOTE: Switch (A) on wiper motor has to stay in "ON" position to operate wiper with overhead switch (B).

Press top of switch (B) to operate wiper. Press bottom of switch to operate rear window washer.
