Differences of Vehicle Controls on Tractors Without Cab

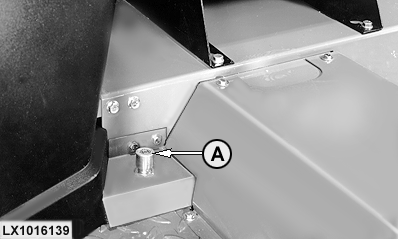

LX1016139

6110L to 6510L

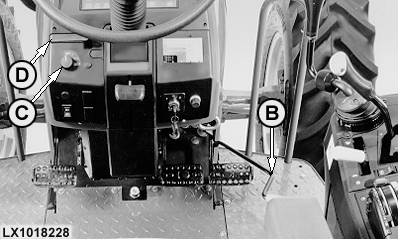

LX1018228

6110 to 6410

A-Differential lock

B-Foot throttle

C-Light switch

D-Turn signal lever

LX,OCONTR011239 -19-01APR98-1/2

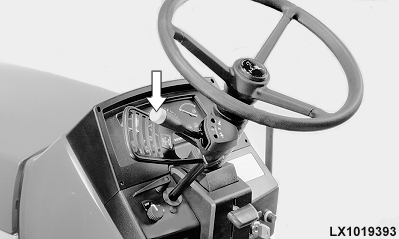

Mechanical reverser lever on steering column

LX1019393

LX,OCONTR011239 -19-01APR98-2/2
