Dome and Console Lights

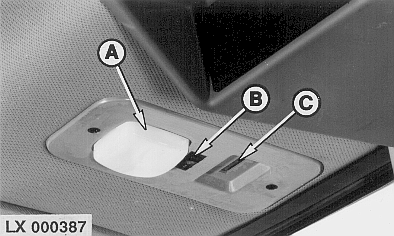

Lamp (A) glows continuously when switch (B) is in position 1. In position 2 the lamp glows as soon as cab door is opened. It is switched off in position 0.

Lamp (C) illuminates the gear and range shift levers when the parking lights or headlights are switched on.

LX000387

LX,OKAB011234 -19-01APR97-1/2

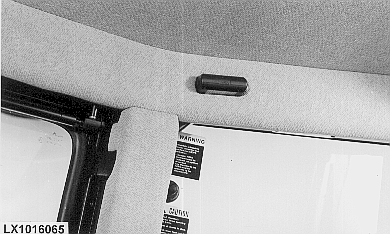

Console light on tractors with Low Clearance Cab

This lamp illuminates the gear and range shift levers when the parking lights or headlights are switched on.

LX1016065

LX,OKAB011234 -19-01APR97-2/2
