Changing Oil in MFWD Axle Housing

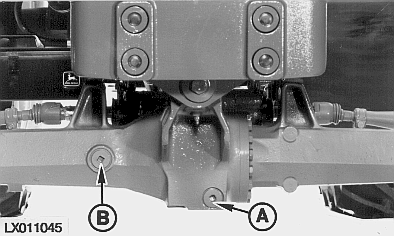

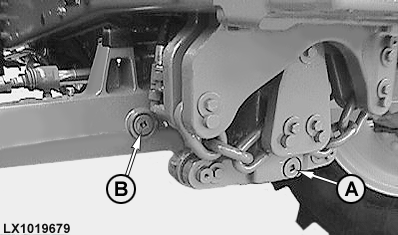

1. Remove drain screw (A) and drain oil into a suitable container.

2. Reinstall drain screw and tighten to 150 N·m (110 lb-ft).

3. Remove oil level/filler plug (B). Fill with fresh oil. The oil level must be up to lip of filler neck. Reinstall plug and tighten to 150 N·m (110 lb-ft).

Capacities

 Axle w/o TLS
Axle with TLS
Narrow axle		 5.0 liters (1.3 U.S. gal.)
6.0 liters (1.6 U.S. gal.)
3.6 liters (1.0 U.S. gal)


LX011045
LX1019679

LX,OM1500014886 -19-01MAR00-1/1
