Installing Front Weights

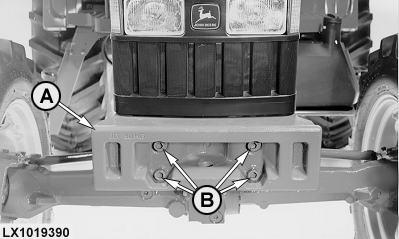

One basic weight (A) and up to 14 front weights may be installed.

IMPORTANT: Tighten attaching cap screws (B) for basic weight to 570 N·m (420 lb-ft).

LX1019390

LX,OMBALL016036 -19-01APR98-1/1
