After First 4 and 8 Hours of Operation

Tighten Rear Wheel Retaining Bolts

(Torques vary depending on tractor equipment)


A-500 N·m (370 lb-ft)
B-310 N·m (230 lb-ft)
C-230 N·m (170 lb-ft)

LX009818
LX001297

LX,OMBREA016080 -19-01MAR00-1/3

Tighten Front Wheel Retaining Bolts/Nuts

(Torques vary depending on tractor equipment)


A-250 N·m (185 lb-ft) - (2WD)
B-300 N·m (220 lb-ft)
C-Screws of class 8.8: 250 N·m (185 lb-ft). Screws of class 10.9: 310 N·m (230 lb-ft)

LX000558
LX000559

LX,OMBREA016080 -19-01MAR00-2/3

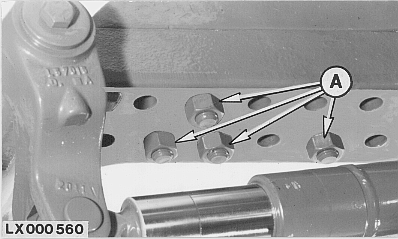

Tighten Adjustable Front Axle

Tighten attaching screws (A) to 400 N·m (300 lb-ft).

LX000560

LX,OMBREA016080 -19-01MAR00-3/3
