Super Comfort Seat

1. Adjust weight

Use crank (A) to adjust seat to suit operator's weight.

2. Adjust height

To adjust the seat upward, lift seat pan until it clicks into place (maximum of 3 detent positions). To adjust downward, lift the seat to the stop position and then lower it.

3. Adjust horizontal spring

Lever (H) forward - Horizontal travel

Lever (H) backward - No horizontal travel

IMPORTANT: Before turning the seat, always switch off the engine. This prevents the tractor or implements from moving if any of the controls are accidentally moved.

The seat is equipped with a swivel which is operated by means of lever (G) as follows:

Lift the lever up. The seat turns 20° to the left and 20° to the right. The seat locks at 10° intervals.

To lower the armrest through 30°, press the armrest tilt adjuster (E) into the armrest.

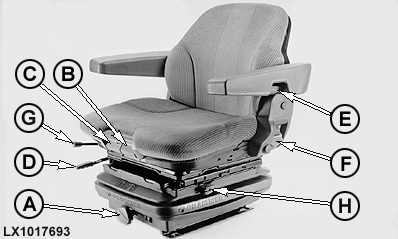

A-Crank for adjusting seat to suit operator's weight
B-Lever for seat tilt adjustment¹
C-Lever for adjusting the cushion position¹
D-Horizontal adjustment
E-Armrest tilt adjustment
F-Backrest tilt adjustment
G-Lever for swivel movement
H-Lever for fore/aft spring¹

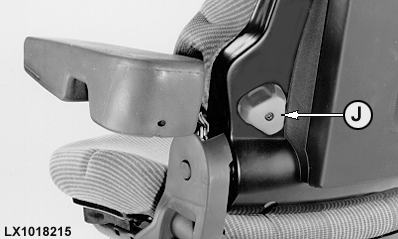

J-Lumbar support adjustment
