Starting the Engine

causym CAUTION: Never operate the engine in a closed building. Make sure there is plenty of ventilation. Danger of asphyxiation!

1. Set selective control valve levers (A) to neutral position.

2. Move hand throttle lever (B) to a medium speed setting (first third of lever travel).

3. Set reverser lever (C) - or gear lever in the case of tractors with SYNCROPLUS ™ transmission - to neutral position.

4. Turn key in main switch (D) clockwise to end position. Release key as soon as engine starts.

Do not operate starter for more than 30 seconds at a time. Turn main switch key to "off" position and wait at least one minute before trying again.

Do not adjust hand throttle lever. Run engine for a few minutes. At temperatures below 0° C (32° F), extend warm-up period accordingly.

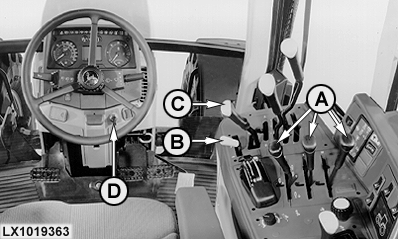

LX1019363

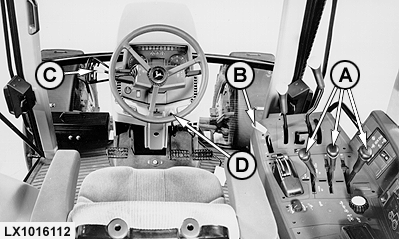

LX1016112


A-Selective control valve levers
B-Hand throttle lever
C-Reverser lever
D-Main switch

SYNCROPLUS is a trademark of Deere & Company.

LX,OMENG016052 -19-01OCT99-1/1
