Shift Lever Positions

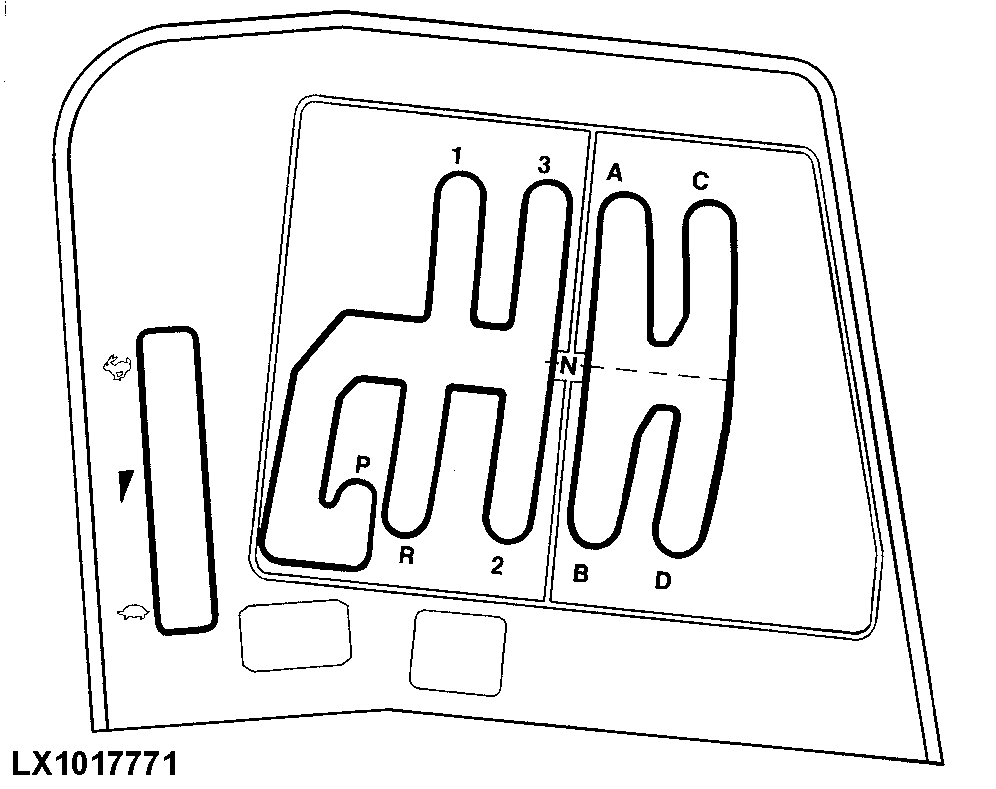

The SYNCROPLUS ™ transmission has 4 ranges. 3 forward gears and 1 reverse gear can be selected in each range.

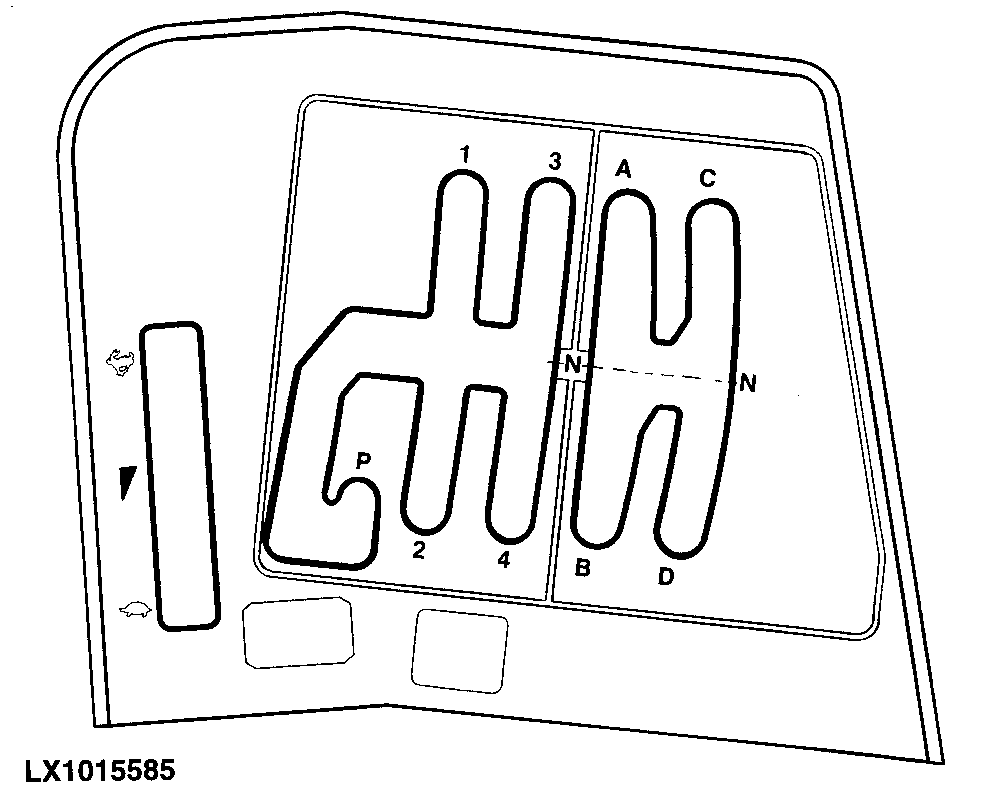

The Power Reverser has 4 ranges and 4 gears. Reverse travel may be selected in any of the ranges/gears.

CAUTION: High speeds can be achieved when reversing in the higher ranges, so take great care.

SYNCROPLUS is a trademark of Deere & Company.

LX,OMFAH013430 -19-01MAR00-1/1
