Light Switches (Tractors Without Cab)

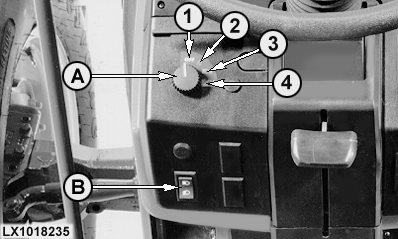

Light switch (A) can be set to the following positions:

• 1-Light switch in "off" position
• 2-Warning lights "on"
• 3-Headlights, tail lights and warning lights "on"
• 4-Headlights and work lights "on"

Switch (B) can be set to the following positions:

• Switch down = Low beam
• Switch up = High beam

Indicator light (C) will glow when switch (B) is in "high beam" position.

LX,OMLIGH014856 -19-01OCT99-1/1
