Shift Lever Positions, PowrQuad Transmission

The PowrQuad transmission has 4 or 6 ranges. 4 gears can be selected in each range. Reverse travel may be selected in any range.

causym CAUTION: High speeds can be achieved when reversing in the higher ranges, so take great care.

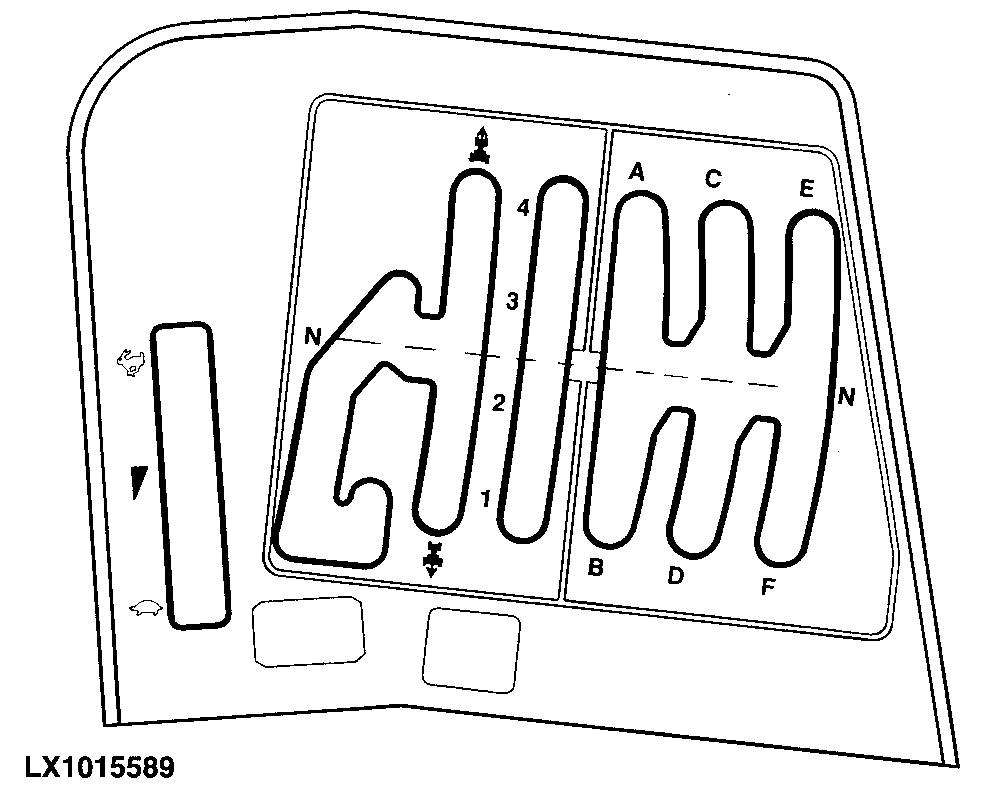

LX1015589

Reverser lever on console

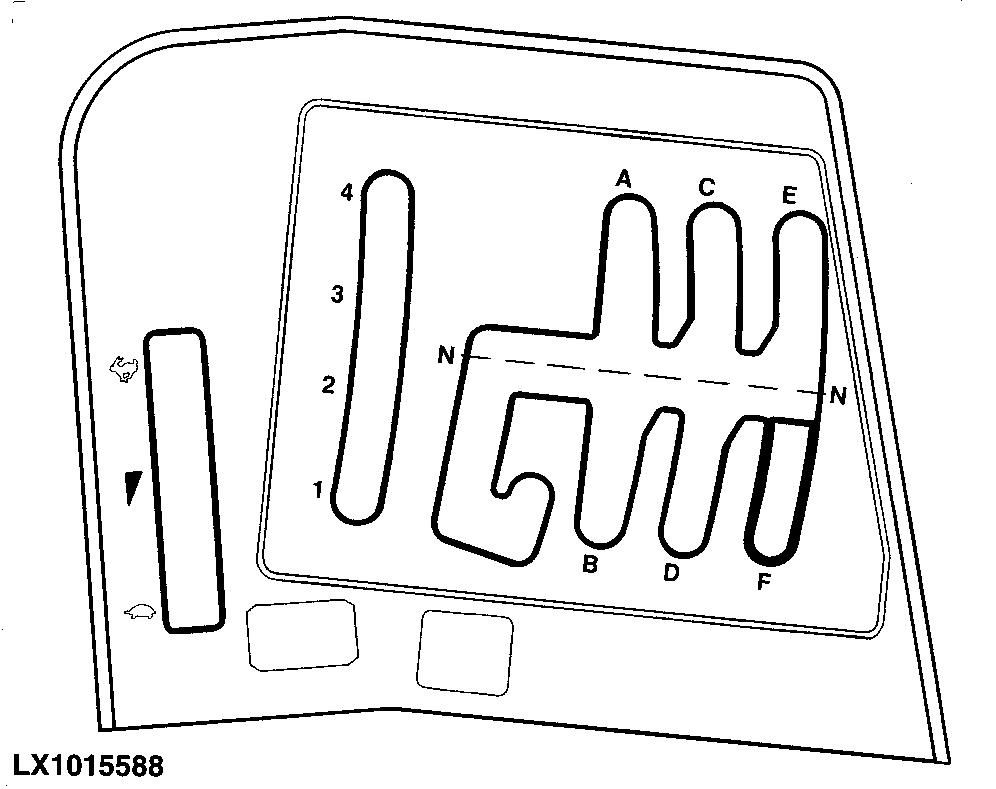

LX1015588

Reverser lever on steering col.

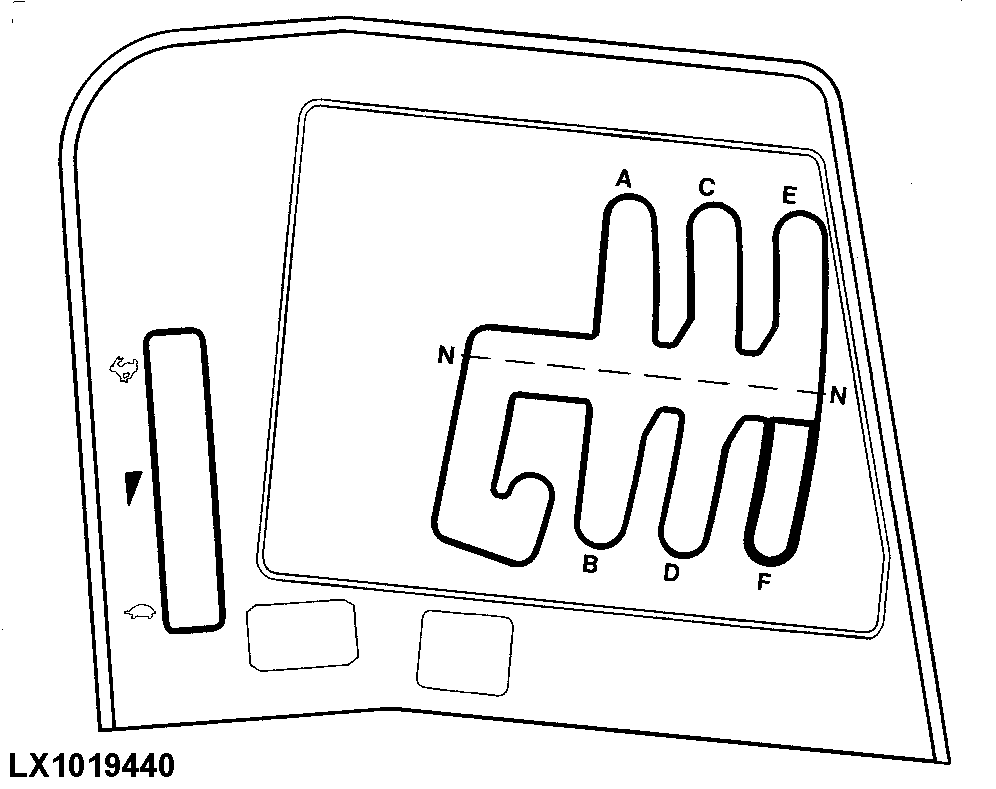

LX1019440

Rev. lever on steering col. (AutoQuad II)

LX,OMOPER017551 -19-01MAR00-1/1
