Neutral Start Circuit

Tractors with SYNCROPLUS ™ transmission

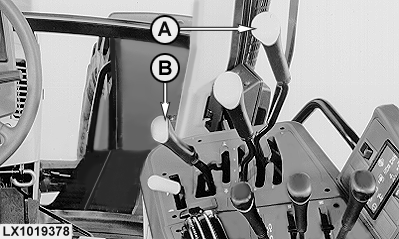

1. Depress clutch pedal.
2. Move range shift lever (A) to neutral.
3. Move gear lever (B) to any gear.
4. Turn key in main switch as far as it will go to the right. The starter must NOT turn over. If it does, see your John Deere dealer immediately.
5. Repeat the test in all the other gears.

SYNCROPLUS is a trademark of Deere & Company.

LX,OMSERV016066 -19-01APR98-1/4

Tractors with Power Reverser

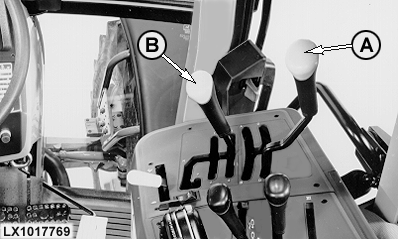

1. Depress clutch pedal.
2. Move range shift lever (A) to neutral.
3. Move the reverser lever (B) to any travel direction (forward or reverse).
4. Turn key in main switch as far as it will go to the right. The starter must NOT turn over. If it does, see your John Deere dealer immediately.
5. Repeat the test in the other direction of travel.

LX,OMSERV016066 -19-01APR98-2/4

Tractors with POWRQUAD ™ transmission and mechanical reverser

1. Depress clutch pedal.
2. Move range shift lever (A) to neutral.
3. Move reverser lever (B) to the "forward" position.
4. Turn key in main switch as far as it will go to the right. The starter must NOT turn over. If it does, see your John Deere dealer immediately.
5. Repeat the test in the "reverse" position.

POWRQUAD is a trademark of Deere & Company.

LX,OMSERV016066 -19-01APR98-3/4

Tractors with PowrQuad transmission and electrical reverser

1. Move range shift lever (A) and reverser lever (B) to neutral.
2. Start the engine and wait 6-7 seconds.
3. Move the reverser lever to "forward" or "reverse", and release it there.

If the reverser lever remains in the selected position without being held there manually, the neutral start circuit is operating correctly.

If the reverser lever moves INSTANTLY by itself from "forward" or "reverse" to neutral without being moved by hand, then the neutral start circuit must be repaired by your John Deere dealer without delay.

LX,OMSERV016066 -19-01APR98-4/4
