IMPORTANT:
To prevent unnecessary damage to the electrical system, never use a fuse with a rating higher than the one already installed.

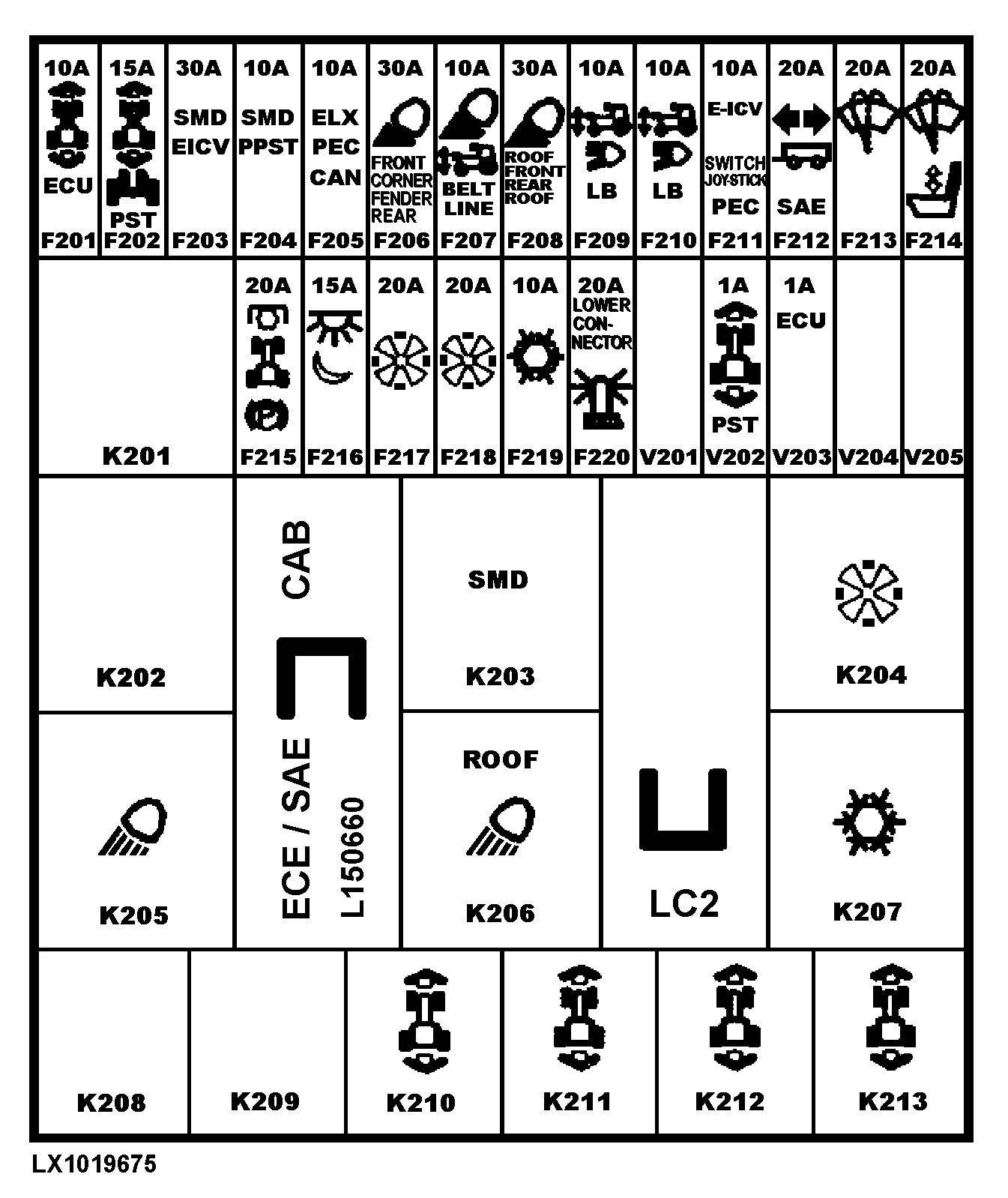

Fuses
F201
10A Electrical reverser control and engine control unit (ECU)
F202
15A Electrical reverser control and engine control unit (SFA)
F203
30A Stepper motor driver (multi-function lever)
F204
10A Stepper motor driver (AutoQuad transmission)
F205
10A Data bus/transm. and electronic control unit (PEC)
F206
30A Front grille and rear fender work lights
|
F207
10A Cab frame work light
F208
30A Front and rear cab roof work lights
F211
10A Multi-function lever
F212
20A Flasher (from serial number 256587)
F213
20A Windshield wiper and washer
F214
20A Rear window wiper/washer and air compressor (operator seat)
F215
20A Front PTO, radio and back-up alarm
F216
15A Shift console light
F217
20A Cab ventilation and heater fan
F218
20A Cab ventilation and heater fan
F219
10A Air conditioner
F220
20A Front loader, beacon
