Fuses (Tractors With Cab)

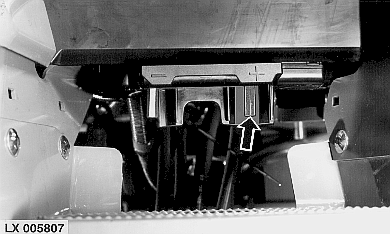

The main fuse is located inside the power distributor. It protects the entire battery circuit (160 A).

Disconnect the battery, unscrew the r.h. pin and remove the retaining screw. Lift out the power distributor from below.

LX005807

LX,OMWAR013486 -19-22SEP97-1/3

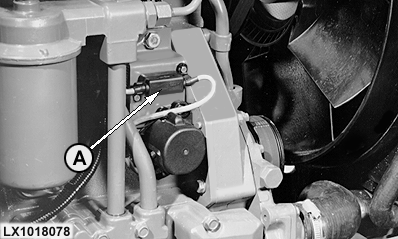

Fuse (A) is for the electrical starting aid. It is a 70 A fuse.

LX1018078

LX,OMWAR013486 -19-22SEP97-2/3

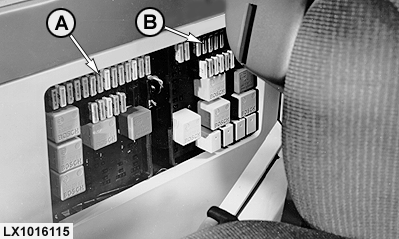

The other fuses are located in two load centers (fuse boxes).


A-Load center 1
B-Load center 2

LX1016115

LX,OMWAR013486 -19-22SEP97-3/3
