Float Position

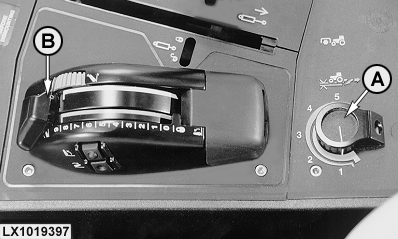

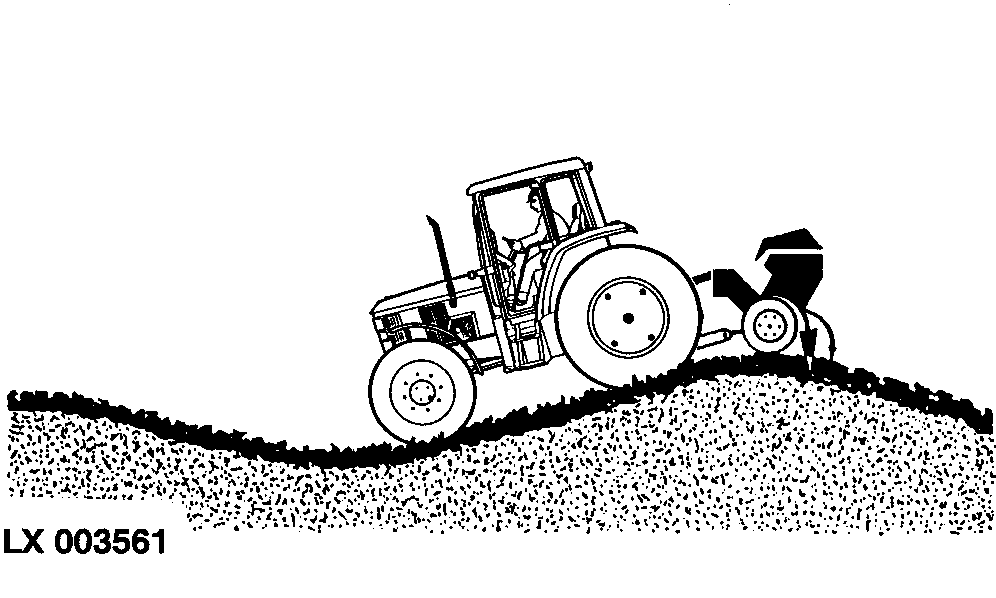

In "Float" position (for rockshaft-controlled implements with gauge wheel), implement can move freely up and down to follow ground contours independently of the tractor. To obtain a "floating" action, set load/depth control (A) to "1" and push hitch control lever (B) fully to the front.

LX,OROCK003535 -19-01APR98-1/1
