Rockshaft Remote Control

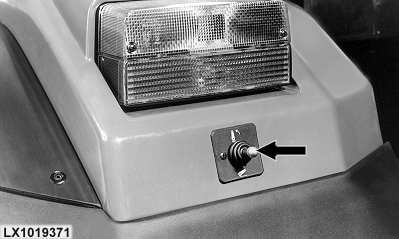

This switch allows the rockshaft to be operated from outside the operator's cab. For safety reasons, the rockshaft rises and drops at a slower rate, and the height and depth values are ignored.

Pull switch out and push up - Raise implement

Pull switch out and push down - Lower implement

NOTE: Once the remote control has been activated, the rockshaft is prevented from moving accidentally. To make the rockshaft ready for operation again, either:

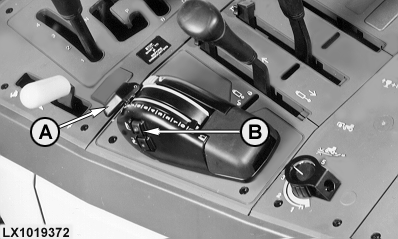

move hitch control lever (A) in the cab to the position that corresponds to the position of the draft links,

move hitch control lever to one of the end positions, or

actuate raise/lower switch (B).

LX,OROCK008952 -19-01APR98-1/1
