Installing Weights on Flanged Axle

causym CAUTION: When installing and removing quik-tatch weights, always position wheels so that retainer jaws are at the top. This prevents weights from falling when cap screw is removed.

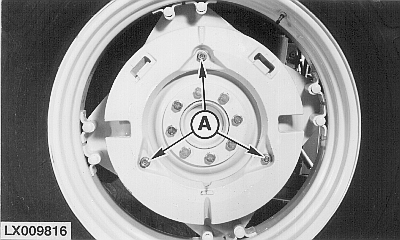

Attach first weight to wheel disk using three cap screws (A).

LX009816

LX,OSPU000248 -19-01FEB00-1/2

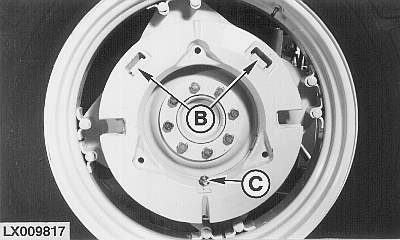

When installing further weights, position wheel so that retainer jaws (B) are at the top. Hang weight in retainer jaws and secure with a cap screw (C) at the bottom.
