Adjusting Front Wheel Tread With Reversible Rims

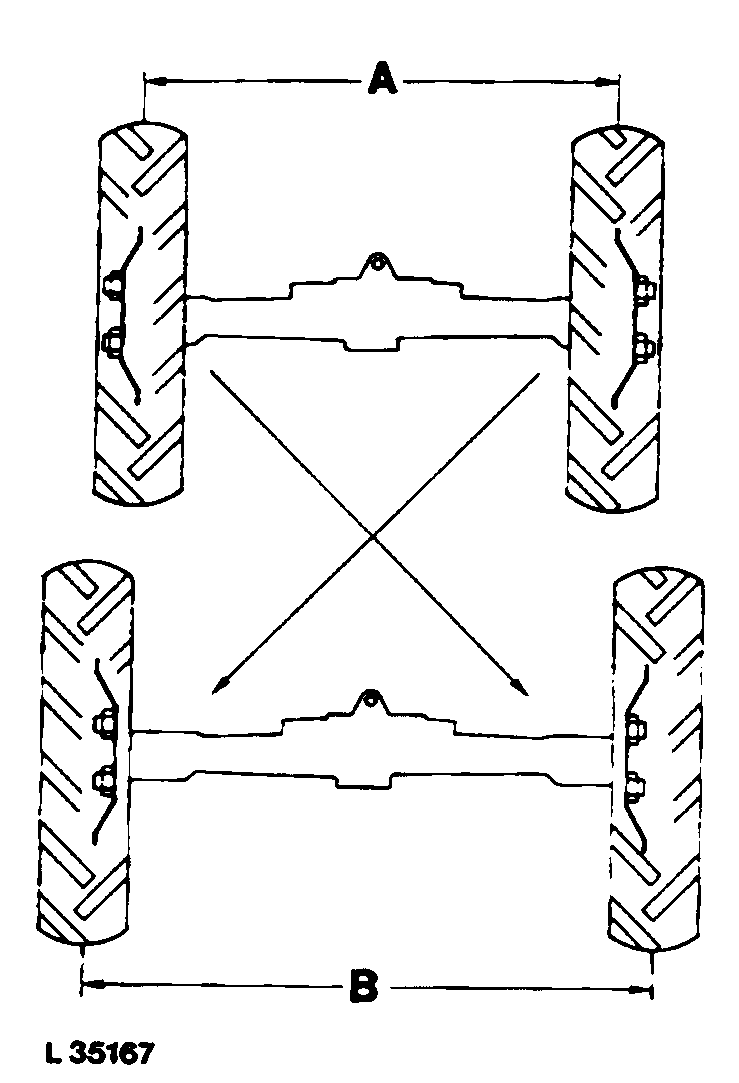

By reversing the complete front wheel, two different wheel treads can be obtained. Installing the wheels with the cupped disk facing inward gives the narrow tread; installing the wheels with the cupped disk facing outward gives the wider tread.

When changing to another tread, install left-hand wheel on right-hand side and right-hand wheel on left-hand side of tractor.

	Tires	Position A	Position B
Standard tread widths With 60 mm (2.36 in.) spacers	10.5/80-18 9.5-16^a 10.5/80-18 9.5-16^a	1589 mm (62.6 in.) - 1709 mm (67.3 in.) 1715 mm (67.5 in.)	1761 mm (69.3 in.) 1756 mm (69.1 in.) 1881 mm (74.1 in.) 1876 mm (73.9 in.)
^afor Low Profile tractors only

LX,OTREAD004940 -19-01MAR00-1/1
