Check Front Wheel Toe-In

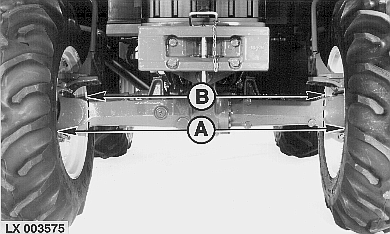

Measure front and rear of front wheels from rim flange to rim flange at hub height.

1. Measure dimension (A).
2. Turn front wheels 1/2 turn.
3. At the same point as dimension (A) was previously measured, measure dimension (B).

Dimension (A) must not differ from dimension (B) by more than 1.5 mm (0.06 in.).

LX,OWHEEL003544 -19-01OCT97-1/1
