Control Lever for Selective Control Valves

The control lever has four settings.

The remote cylinder extends when the lever is moved to the "Raise" position.

The remote cylinder is held in place when the lever is in "Neutral".

The remote cylinder retracts when the lever is moved to the "Lower" position.

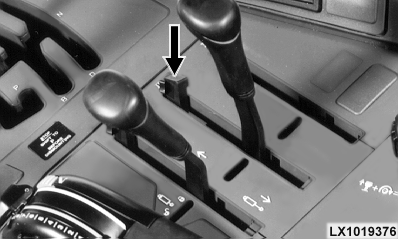

When the lever is in the "Float" position (i.e. piston moves freely inside remote cylinder), the mounted implement follows the ground contours. To get "Float" position, raise stop (see arrow).

NOTE: If additional external valves are used, move the control lever to neutral when shutting off each hydraulic function.

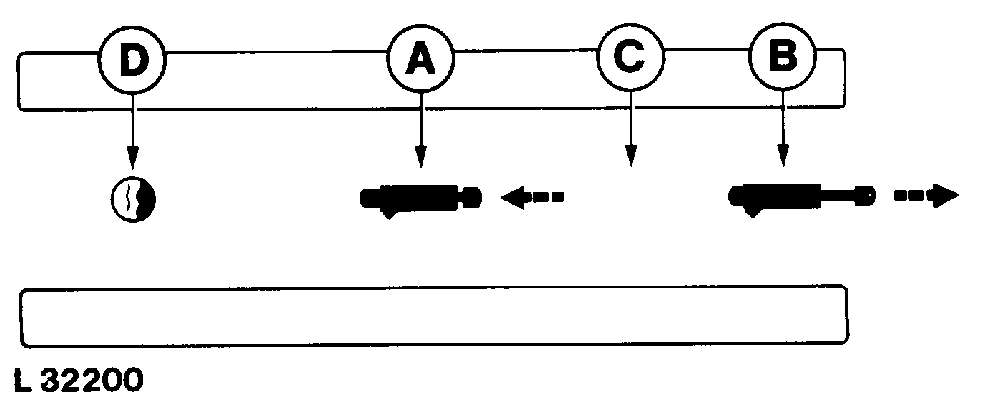

A-Lower
B-Raise
C-Neutral position
D-Float position

LX,OZUS006334 -19-01MAR00-1/2

Low Profile Orchard tractors

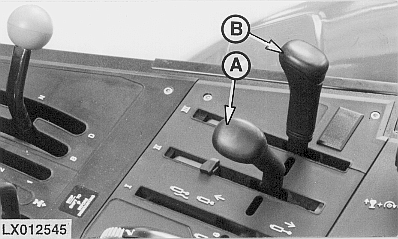

No. II control lever (A) is used for selective control valve I.

No. III control lever (B) is used for selective control valve II.

Control lever No. I is not used (due to space).

LX,OZUS006334 -19-01MAR00-2/2
