Digital Display (Dual Gauge II)

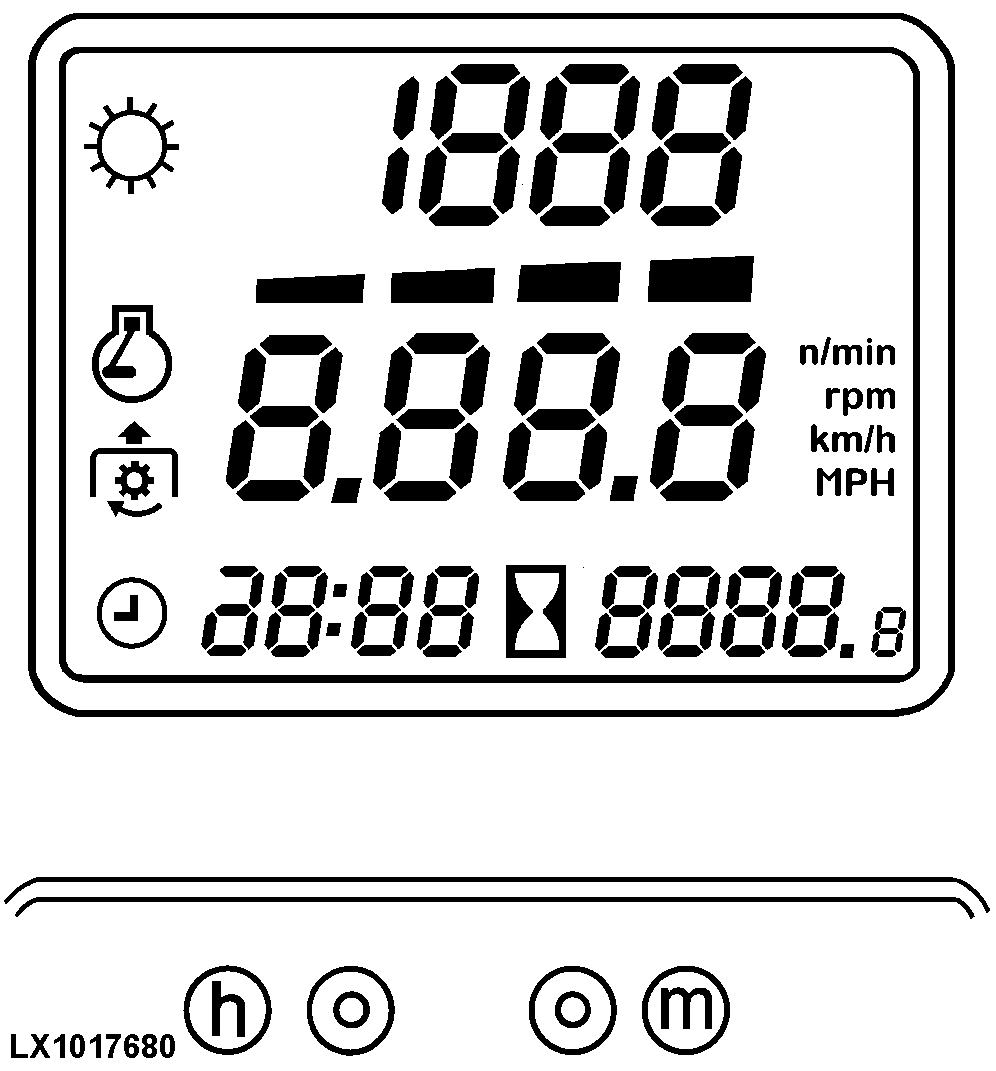

The digital display shows travel speed, engine speed and PTO speed; it also indicates the time of day (clock) and hours of operation. On tractors with POWRQUAD ™ Plus transmission, it also indicates which gear is selected.

After the ignition is switched on, it shows the operating hours, before changing to display the travel speed once the tractor is moving.

Roll-mode switch (A) changes the display from one mode to the next. If tractor is equipped with Dual Gauge Plus II it is also used to reset error messages.

POWRQUAD is a trademark of Deere & Company.

OU12401,000050E -29-01NOV00-1/7

Travel Speed Display

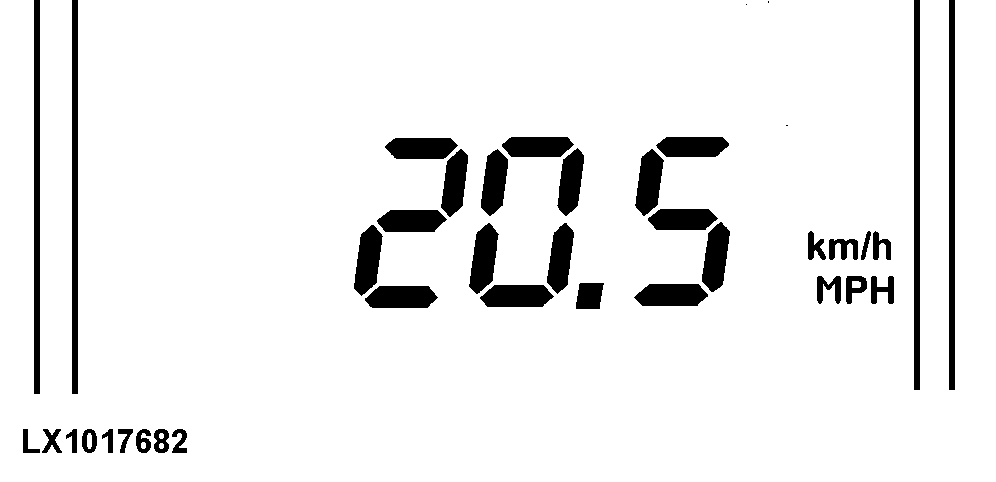

Travel speed is indicated either as "km/h" or "MPH".

NOTE: On tractors without creeper transmission, the display changes to 0 as soon as travel speed drops below 0.5 km/h (0.3 mph).

On tractors with creeper transmission, the display changes to 990 m/h (0.600 mph) as soon as travel speed drops below 1 km/h (0.6 mph).

OU12401,000050E -29-01NOV00-2/7

Engine Speed Display

The engine symbol appears and engine speed is displayed.

NOTE: If rear PTO is switched on, the analog indicator jumps to PTO speed.

OU12401,000050E -29-01NOV00-3/7

PTO Speed Display

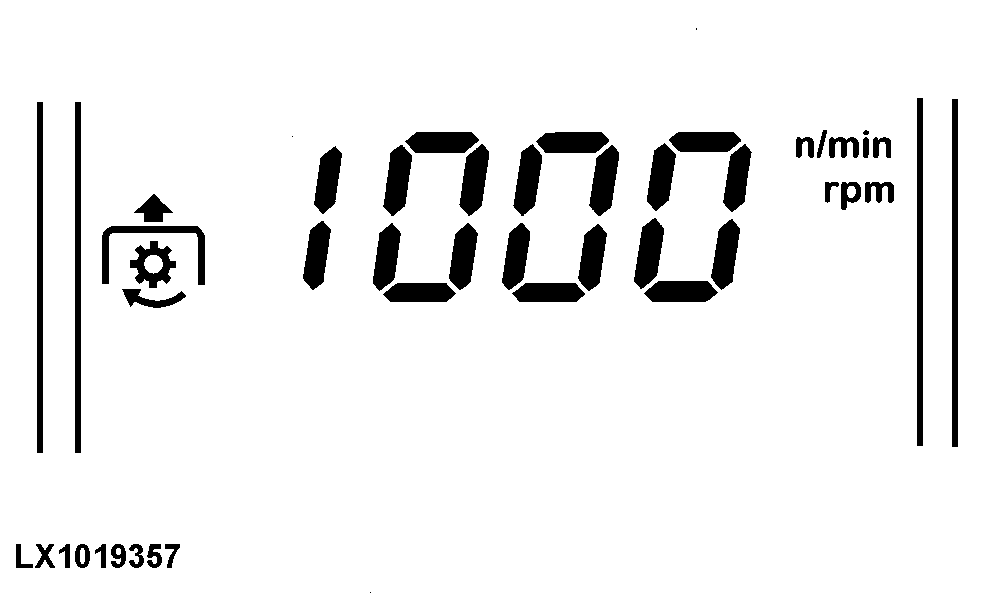

The PTO symbol appears. If front PTO is switched on in addition an arrow is displayed. PTO speed is displayed.

NOTE: With the engine running, if PTO speed exceeds 620 rpm, it is displayed intermittently (flashing) regardless of the display selected. On tractors equipped with Dual Gauge Plus II in addition the message 'Rear PTO speed too high' is shown. This warns of the possible danger if a 540 rpm PTO is being used. The "CAUTION" light also flashes. Actuate the roll-mode switch again to stop the flashing display (this may take up to 5 seconds). Flashing stops automatically when PTO speed drops below 590 rpm.

OU12401,000050E -29-01NOV00-4/7

Time Display (Clock)

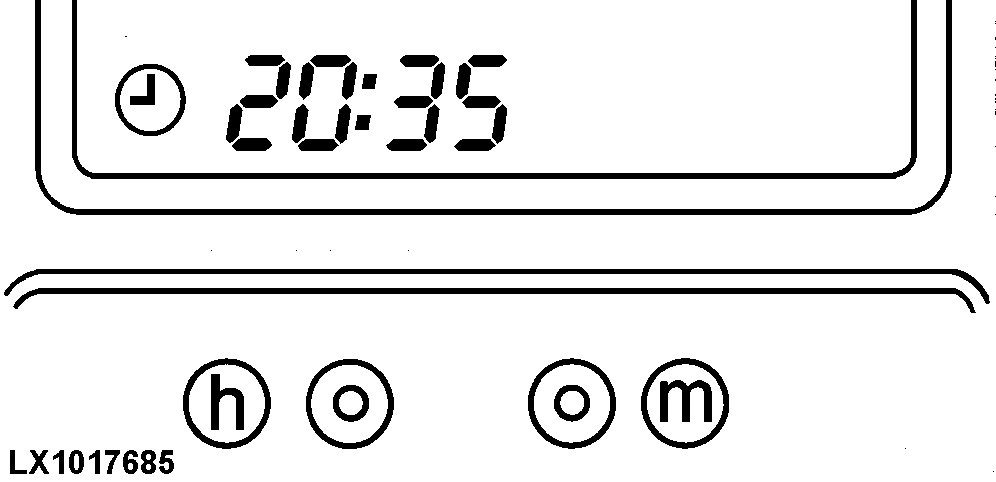

The clock symbol appears and the time of day is displayed. Can be reset using the two keys below the display.

OU12401,000050E -29-01NOV00-5/7

Operating Hours Display

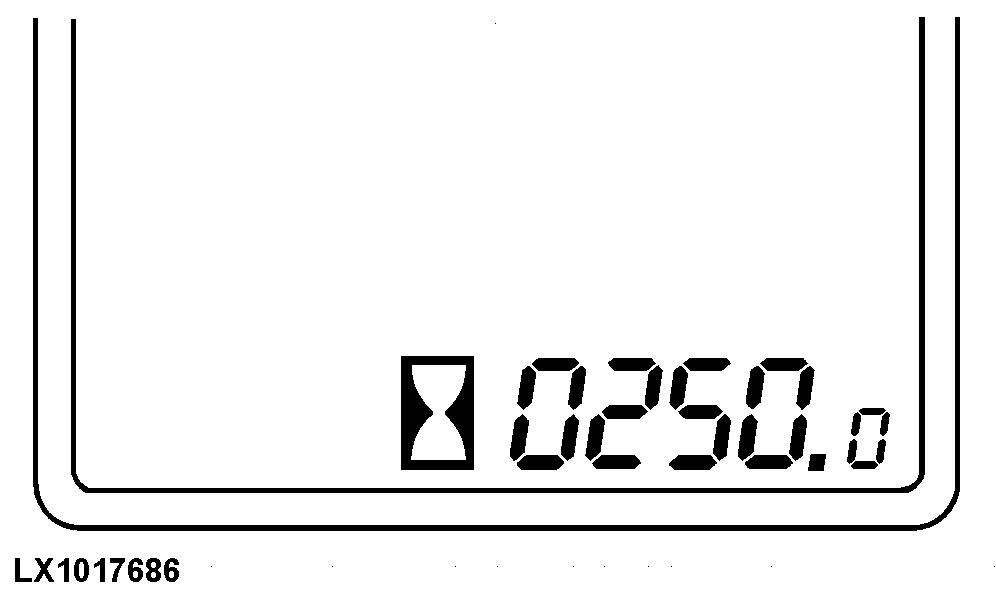

When the ignition is switched on, the display shows the number of hours operated by the engine.

OU12401,000050E -29-01NOV00-6/7

Gear Selection Display (Tractors With POWERGARD ™ Plus Transmission)

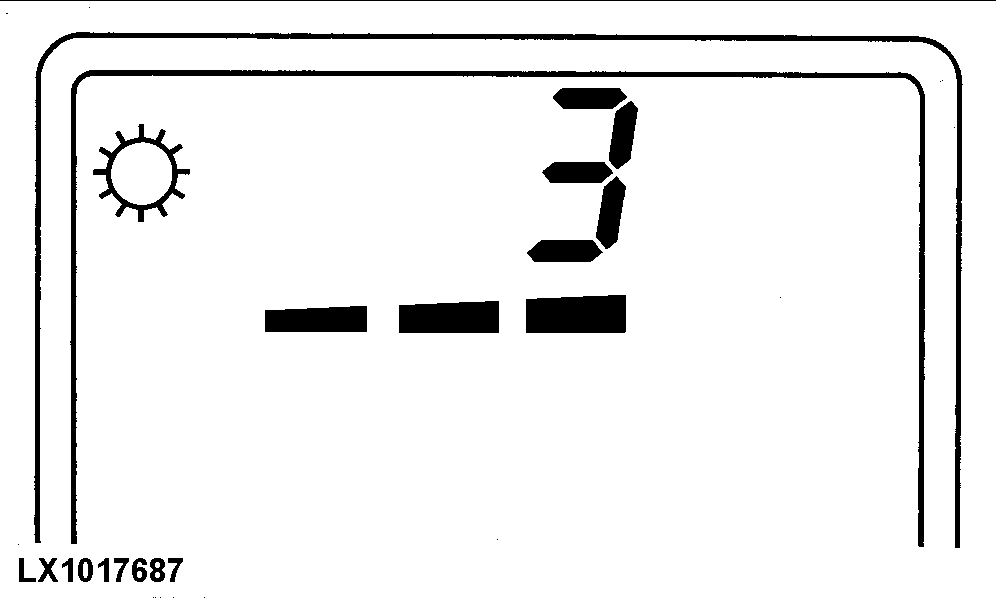

The transmission symbol appears; the gear that is currently selected is displayed.

On tractors with Dual Gauge Plus II, the direction of travel is also displayed.

On tractors with AutoQuad transmission, the word "AUTO" appears as soon as this function is selected.

POWERGARD is a trademark of Deere & Company.
