Performance Monitor

NOTE: Ignition switch must be in the "ON" position to operate performance monitor.

Performance monitor displays information related to various speeds, area, distance, time and alarm data.

Bargraph (C) displays ROW-TRAK ™ implement guidance system performance, wheel slip and monitor backlight intensity.

Area, wheel slip, slip alarm, width, implement indicator, distance, backlight brightness, and service can be adjusted or preset.

A radar sensor is required for an accurate calculation of wheel slip, area covered, distance or speed. Without a radar sensor, values are estimates based on wheel speed.

NOTE: An optional implement switch, mounted on implement, provides accurate acreage count when implement is raised or lowered. See your John Deere Dealer.

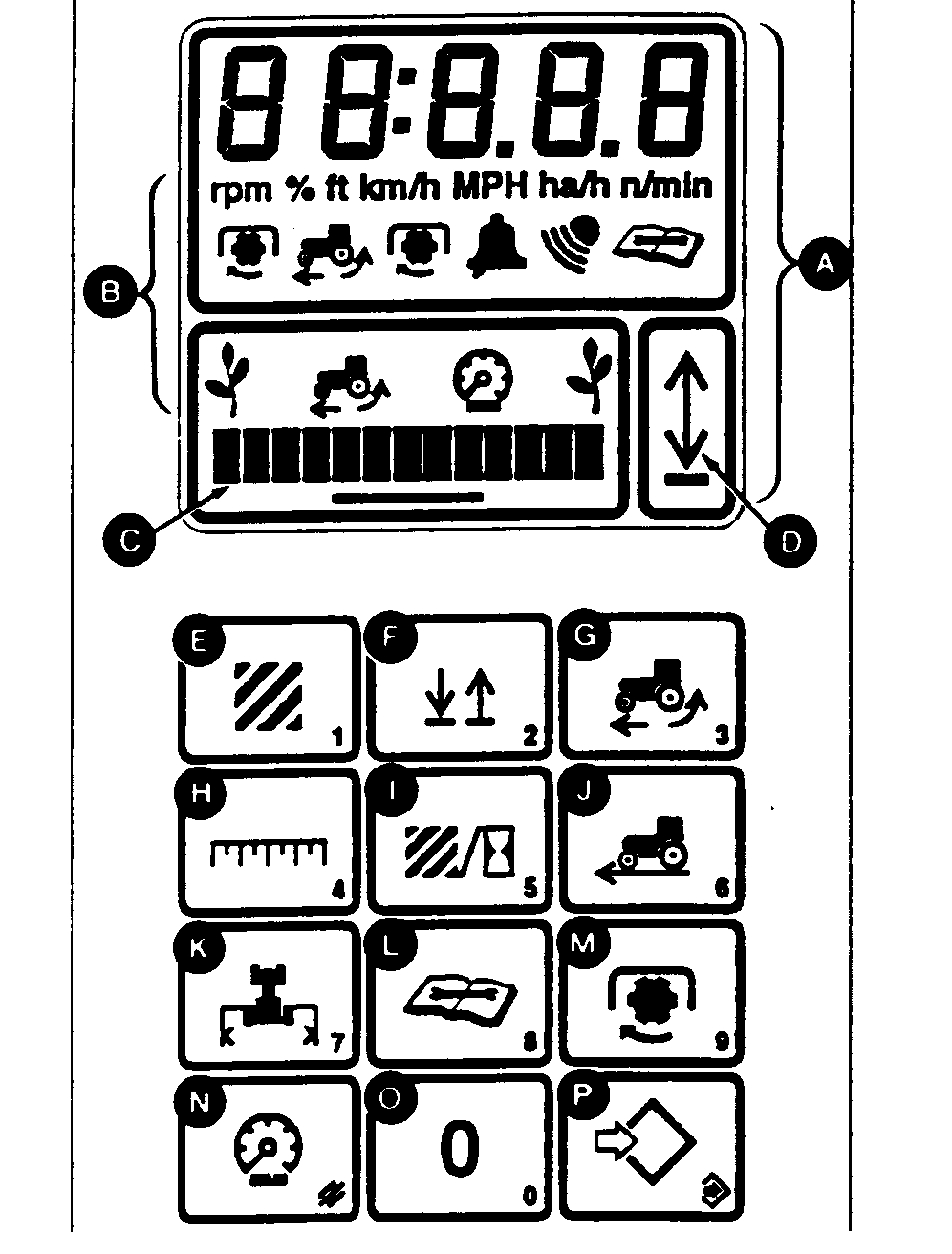

A-Display Field
B-Indicators
C-Bargraph Display
D-Implement Indicator
E-Area
F-Implement
G-% Slip
H-Distance
I-Area/H
J-Speed
K-Width
L-Service
M-PTO RPM
N-Backlight/Cancel
O-Zero
P-Set/Save

ROW-TRAK is a trademark of Deere & Company.
