Lubricating Front Axle and Front Wheels

Tractors Without Front-Wheel Drive

IMPORTANT: Carry out this service after every ten hours of operation when working under very wet and muddy conditions.

Lubricate front axle and front wheel grease fittings (these differ depending on tractor equipment) using John Deere multipurpose grease.

IMPORTANT: Thoroughly clean all grease fittings prior to greasing and replace damaged grease fittings immediately.

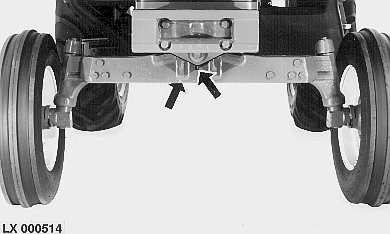

LX000514
LX000515
LX000516

AG,OU12401,10080 -19-26JUL00-1/2

Tractors With Front-Wheel Drive

IMPORTANT: Carry out this service after every ten hours of operation when working under very wet and muddy conditions.

Lubricate front axle and front wheel grease fittings using John Deere multipurpose grease.

IMPORTANT: Thoroughly clean all grease fittings prior to greasing and replace damaged grease fittings immediately.

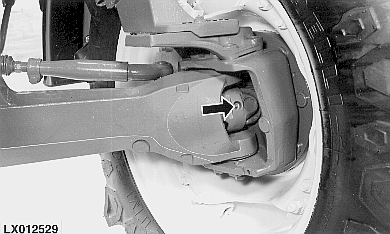

LX012529

6405 Tractor

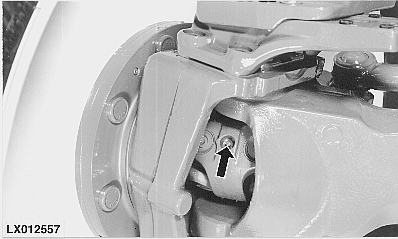

LX012557

6605 Tractor

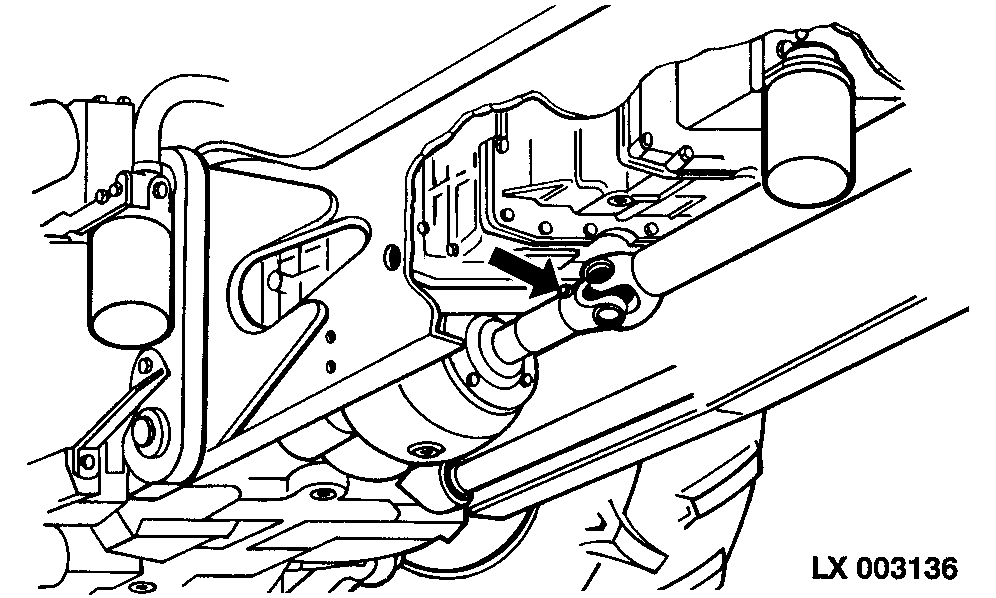

LX003136

AG,OU12401,10080 -19-26JUL00-2/2
