Checking Oil Level in MFWD Axle Housing

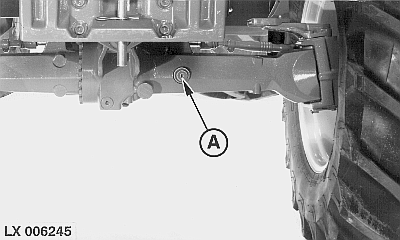

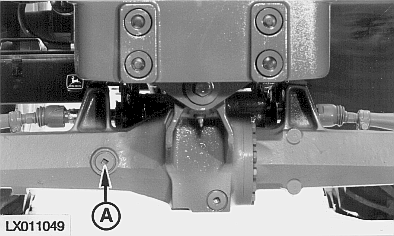

Remove level plug (A). Oil should be level with plug bore. If necessary, top up with transmission oil. Tighten level plug to 150 N·m (110 lb-ft.). Always use a transmission oil listed in the "Fuel, Lubricants, Hydraulic Oil and Coolant" section.

AG,OU12401,10081 -19-26JUL00-1/1
