After First 100 Hours of Operation

Change engine oil. See "Service - Every 250 Hours".

Renew engine oil filter element. See "Service - Every 250 Hours".

Tighten air intake hoses and hose clamps. See "Service - Every 500 Hours".

Change transmission/hydraulic oil filters. See "Service - Every 750 Hours".

Change oil in front-wheel drive axle. See "Service - Every 1500 Hours".

AG,OU12401,10083 -19-01OCT00-1/3

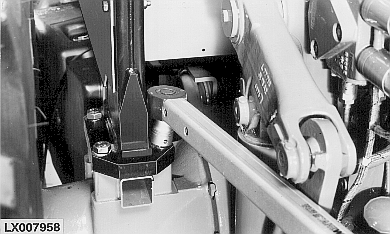

Check Mounting Torques

Tractors without Cab

Check all roll guard attaching screws for tightness.

Specified torques are 400 N·m (300 lb-ft).

LX007958

AG,OU12401,10083 -19-01OCT00-2/3

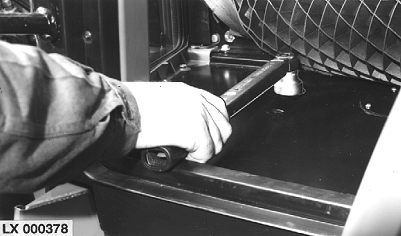

Tractors with Cab

Check all cab attaching screws for tightness.

Specified torques are as follows:

  • front attaching screws: 220 N·m (160 lb-ft)
  • rear attaching screws: 200 N·m (145 lb-ft)
LX000378

AG,OU12401,10083 -19-01OCT00-3/3
