Changing Oil in MFWD Axle Housing

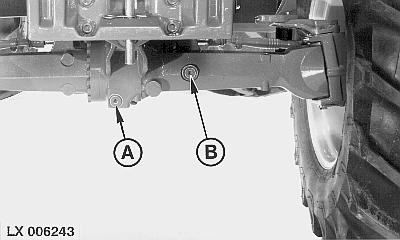

1. Remove drain screw (A) and drain oil into a suitable container.

2. Reinstall drain screw and tighten to 150 N·m (110 lb-ft).

3. Remove oil level/filler plug (B). Fill with approx. 5.00 liters (1.32 U.S. gal.) of fresh oil.

The oil level must be up to lip of filler neck. Reinstall plug and tighten to 150 N·m (110 lb-ft).

AG,OU12401,10087 -19-26JUL00-1/2

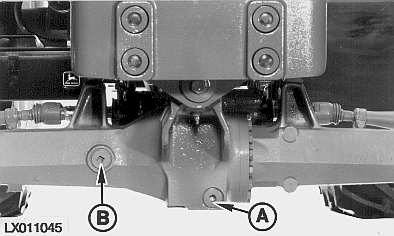

1. Remove drain screw (A) and drain oil into a suitable container.

2. Reinstall drain screw and tighten to 150 N·m (110 lb-ft).

3. Remove oil level/filler plug (B). Fill with approx. 6.30 liters (1.7 U.S. gal.) of fresh oil.

The oil level must be up to lip of filler neck. Reinstall plug and tighten to 150 N·m (110 lb-ft).

AG,OU12401,10087 -19-26JUL00-2/2
