Changing Oil in MFWD Final Drives

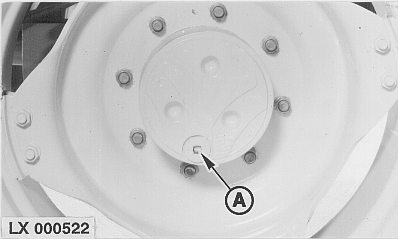

1. Turn wheel until drain screw (A) is at the bottom. Remove drain screw and drain oil into a suitable container.

2. Turn wheel so that "OIL LEVEL" mark is in level position and fill with approx. 0.80 liters (0.21 U.S. gal) fresh oil through drain screw bore.

3. Check oil level, reinstall screw and tighten to 150 N·m (110 lb-ft.).

AG,OU12401,10088 -19-01APR01-1/1
