Opening Hood

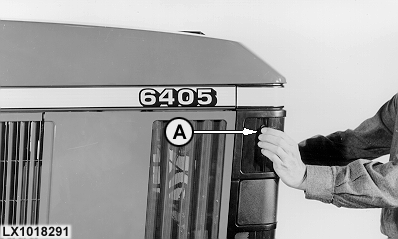

Press catch (A) and pull hood forward.

AG,OU12401,10108 -19-05AUG00-1/3

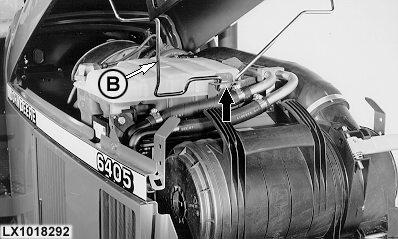

Open hood and engage support (B); see arrow.

To close, raise hood and disengage support (B). Lower the hood and push it back until the hood engages.

AG,OU12401,10108 -19-05AUG00-2/3

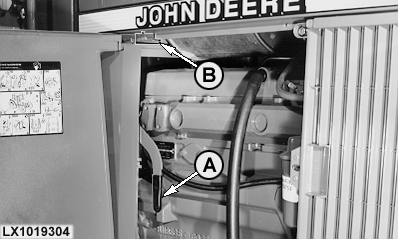

Pull lever (A) forward to unlock hood. The hood can now be folded up. Push down catch (B) to open the hood fully.

AG,OU12401,10108 -19-05AUG00-3/3
